MVR5510AMMA0ES

$5.68

Description：IC PMIC VR5510 QM
Series：-
Mfr：NXP USA Inc.
Package：Tray

SKU:d323f082914b Category: Power Management - Specialized Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PMIC VR5510 QM
Series：-
Mfr：NXP USA Inc.
Package：Tray
Applications：-
Current - Supply：15mA
Voltage - Supply：2.7V ~ 60V
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount, Wettable Flank

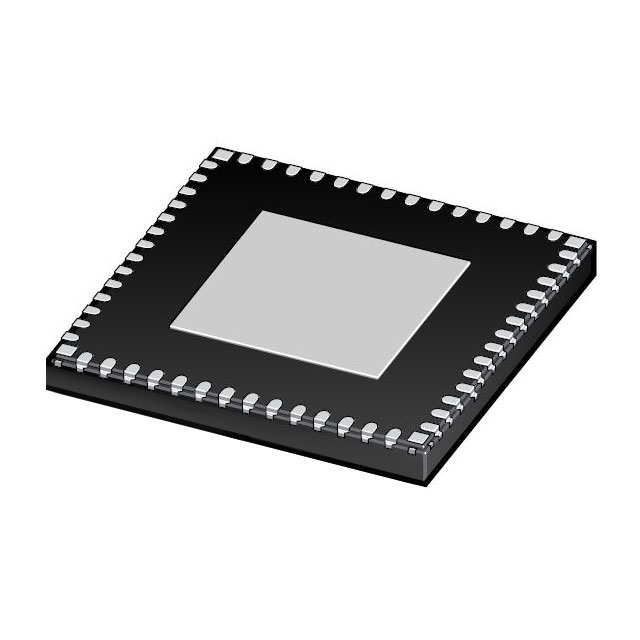

Package / Case：56-VFQFN Exposed Pad
Supplier Device Package：56-HVQFN (8x8)
Grade：Automotive
Qualification：AEC-Q100

Download product information

MVR5510AMMA0ES

Overview

The MVR5510AMMA0ES is a safety power management IC from NXP Semiconductors, designed for automotive applications. It features a QFN-56 package and supports an input voltage range of 2.7 V to 60 V. The device integrates three buck converters, one boost converter, and four LDOs, delivering up to 12 A output current. It operates within a temperature range of -40°C to +105°C and has a quiescent current of 15 mA.

Feature Summary

Integrated multi-output power regulation with SMPS and LDOs
Designed for functional safety applications
Automotive-grade reliability

Applications

S32G platform power management
Safety-critical automotive systems
Voltage regulation in high-voltage environments

Procurement Notes

Verify the exact ordering suffix against the official NXP datasheet to ensure correct configuration. Confirm package type and thermal specifications match your design requirements. Check for moisture sensitivity level (MSL) handling instructions during assembly. Ensure compatibility with your system's input voltage range and load requirements before procurement.

Selection Notes

Select this component when a single IC solution is needed for multiple regulated outputs in automotive safety systems. Consider the 60V input tolerance and integrated protection features. Evaluate the QFN-56 package size against board space constraints. Verify that the 12A total output current meets the system's peak demand.

Part Context

Part of the VR5510 family of safety PMICs. Designed specifically for S32G automotive processors. Offers integrated power sequencing and monitoring capabilities. Replaces discrete power solutions to reduce board complexity.

Replacement Considerations

Check NXP documentation for direct pin-to-pin replacements or upgraded versions within the VR5510 series. Ensure any substitute maintains the same safety integrity level and electrical characteristics.
