MVR5510AVMALEPR2

Overview

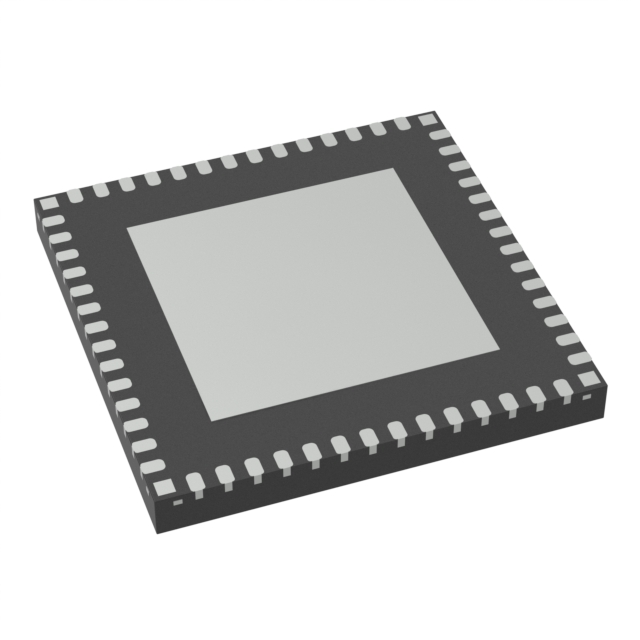

The MVR5510AVMALEPR2 is a safety power management IC from NXP Semiconductors, housed in a QFN-56 package. It operates within an input voltage range of 2.7 V to 60 V and supports a maximum output current of 12 A. The device functions as a multi-output regulator featuring SMPS and LDO technologies. It is designed for industrial applications with an operating temperature range extending up to +125°C (TA) or +105°C depending on specific configuration, and includes humidity sensitivity features.

Feature Summary

• Integrated safety power management architecture combining switching mode power supplies and low-dropout regulators
• Multi-output capability supporting complex system power distribution requirements
• Designed for high-reliability industrial environments with extended thermal performance

Applications

• Industrial safety systems requiring certified power management
• Automotive electronic control units demanding robust voltage regulation
• Infrastructure equipment utilizing multiple power rails from a single source

Procurement Notes

Verify the exact suffix against official NXP documentation to confirm package type and reel specifications. Ensure compatibility with your system's thermal design and input voltage constraints. Cross-reference the datasheet for specific safety certification levels required by your application standards before finalizing procurement decisions.

Selection Notes

Select this component when a unified solution for buck and boost conversion alongside linear regulation is needed. Consider the QFN-56 footprint for space-constrained designs. Evaluate the 12 A output capacity against peak load requirements. Confirm that the 60 V input tolerance aligns with your supply network characteristics.

Part Context

This part belongs to the VR5510 series of specialized PMICs from NXP Semiconductors. The series focuses on integrated power solutions for safety-critical applications. Development kits such as KITVR5510MA0EVM are available for evaluation purposes. The component represents a consolidated approach to managing multiple voltage domains in complex electronic systems.

Replacement Considerations

Consult NXP official documentation for direct pin-to-pin substitutes within the VR5510 family. Verify electrical parameter equivalence before considering alternative manufacturers. No public cross-reference data confirms non-NXP equivalents.
