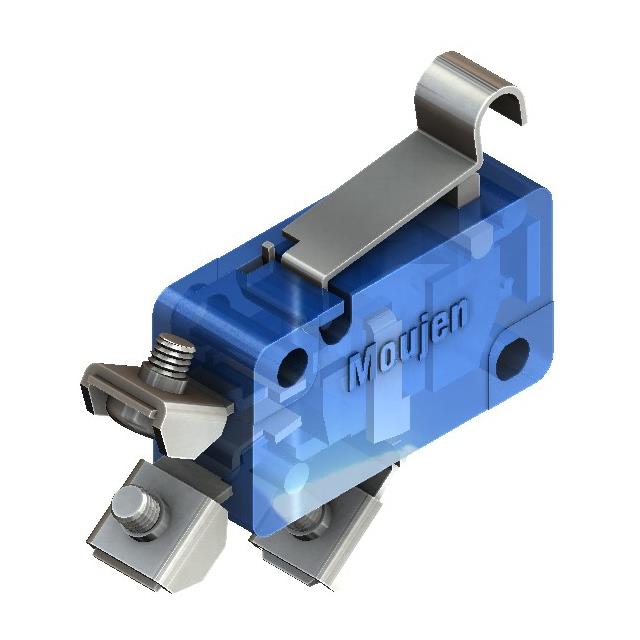

MVS-3301

MVS-3301 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 6A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MVS-3301

• Description：SWITCH SNAP ACTION SPDT 6A 250V
• Series：MVS
• Mfr：Moujen
• Package：Retail Package
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC), 500mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Simulated Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP40
• Features：Positive Opening
• Operating Force：220gf
• Release Force：50gf
• Pretravel：0.060" (1.5mm)
• Differential Travel：0.006" (0.15mm)
• Overtravel：0.051" (1.3mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MVS-3301
