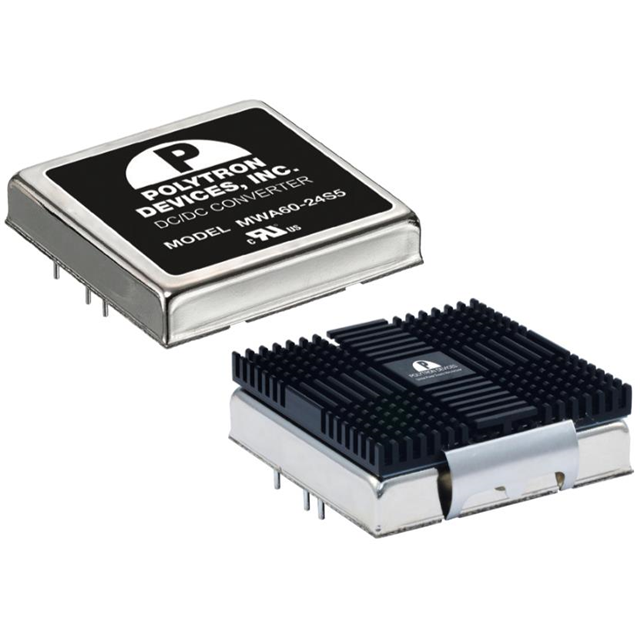

MWA60-24S12

MWA60-24S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Polytron. Its product description is DC DC CONVERTER 12V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MWA60-24S12

• Description：DC DC CONVERTER 12V 60W
• Series：MWA60 (60W)
• Mfr：Polytron
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：60 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-25°C ~ 71°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：10-DIP Module, 8 Leads
• Size / Dimension：3.94" L x 2.76" W x 0.75" H (100.0mm x 70.0mm x 19.1mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for MWA60-24S12
