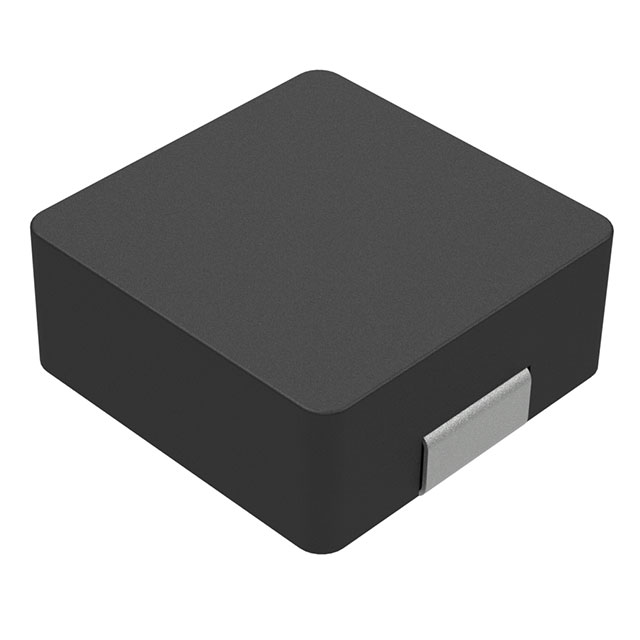

MWLA0603S-330MT

$0.80

Description：FIXED IND 33UH 240MOHM 2500MA
Series：MWLA-S
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cc869bb34622 Category: Fixed Inductors Brand: Shenzhen Sunlord Electronics Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MWLA0603S-330MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Shenzhen Sunlord Electronics Co., Ltd.. Its product description is FIXED IND 33UH 240MOHM 2500MA. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for MWLA0603S-330MT

Description：FIXED IND 33UH 240MOHM 2500MA
Series：MWLA-S
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Carbonyl Powder
Inductance：33 µH
Tolerance：±20%
Current Rating (Amps)：2:00 AM
Current - Saturation (Isat)：2.5A
Shielding：Shielded
DC Resistance (DCR)：240mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)：0.118" (3.00mm)
Features：-

Fixed Inductors datasheet and documents for MWLA0603S-330MT

MWLA0603S-330MT

Fixed Inductors Overview

The MWLA0603S-330MT is a fixed surface-mount inductor from the MWLA-S series, manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features a shielded drum core wirewound design with an alloy powder magnetic core. The component provides an inductance of 33 µH with a tolerance of ±20%. It supports a maximum saturation current (Isat) of 2 A and has a maximum DC resistance (DCR) of 240 mΩ. The device operates within a temperature range of -55°C to 125°C and is tested at 100 kHz.

Fixed Inductors Feature Summary

Integrated magnetic shielding structure for excellent EMC performance
High efficiency with low magnetic loss characteristics
RoHS compliant and halogen-free construction

Fixed Inductors Applications

High frequency switching power supplies
UPS power supply systems
Computer motherboards

Fixed Inductors Procurement Notes

Verify that the ordered part number matches the specific MWLA-S series designation. Confirm that the required electrical parameters, including the 33 µH inductance value and the 240 mΩ maximum DCR, align with the circuit design requirements. Ensure compatibility with the specified operating temperature range and mounting type.

Fixed Inductors Selection Notes

Select this component when a shielded wirewound inductor with moderate current handling is required. The 33 µH value suits applications needing higher inductance than typical power stages. Consider the physical dimensions and the 2 A saturation limit against the peak current demands of the target application.

Fixed Inductors Part Context

This component belongs to the MWLA-S series of molded power inductors. The series is characterized by high-quality materials and integrated shielding. These inductors are designed for compact electronic designs requiring reliable performance in power conversion and signal processing circuits.
