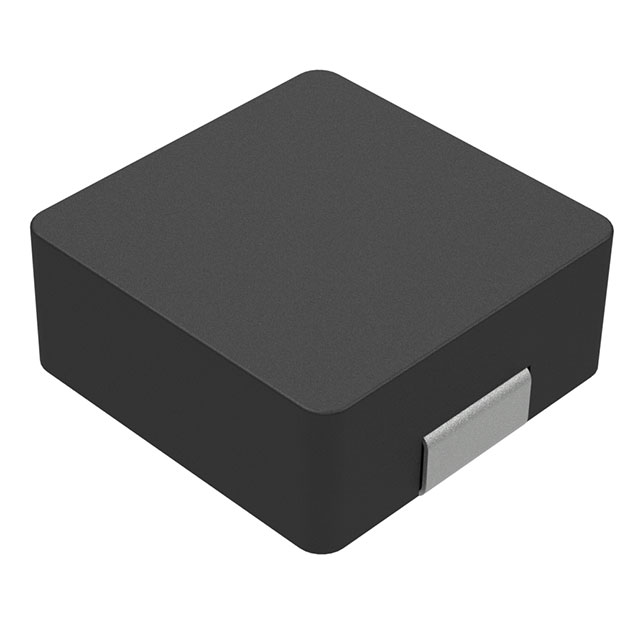

MWSA0605S-150MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Shenzhen Sunlord Electronics Co., Ltd.. Its product description is FIXED IND 15UH 3.1A 90 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for MWSA0605S-150MT
- Description：FIXED IND 15UH 3.1A 90 MOHM SMD
- Series：MWSA-S
- Mfr：Shenzhen Sunlord Electronics Co., Ltd.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Drum Core, Wirewound
- Material - Core：Alloy Powder
- Inductance：15 µH
- Tolerance：±20%
- Current Rating (Amps)：3.1 A
- Current - Saturation (Isat)：4A
- Shielding：Shielded
- DC Resistance (DCR)：90mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.276" L x 0.260" W (7.00mm x 6.60mm)
- Height - Seated (Max)：0.197" (5.00mm)
- Features：-
Fixed Inductors datasheet and documents for MWSA0605S-150MT
Fixed Inductors Overview
The MWSA0605S-150MT is a shielded drum core wirewound inductor from the MWSA-S series by Shenzhen Sunlord Electronics. It features an inductance of 15 µH with a tolerance of ±20%. The component has a maximum DC resistance of 90 mΩ and a rated current of 3.1 A. It operates within a temperature range of -55°C to 125°C and is tested at 100 kHz. The package dimensions are approximately 7.0 mm in length, 6.6 mm in width, and 4.0 mm in height.
Fixed Inductors Feature Summary
- Shielded drum core construction for reduced electromagnetic interference
- Wirewound design utilizing alloy powder magnetic material
- High thermal stability suitable for demanding environments
Fixed Inductors Applications
- Power supply output filtering
- DC-DC converter circuits
- General-purpose power electronics applications
Fixed Inductors Procurement Notes
Verify the specific datasheet version provided by the manufacturer to confirm electrical parameters and mechanical dimensions. Ensure that the nonstandard package footprint matches the target PCB layout requirements. Confirm RoHS compliance status and moisture sensitivity level prior to assembly planning.
Fixed Inductors Selection Notes
Select this component when a 15 µH inductance value is required with a 3.1 A current rating. Consider the 90 mΩ DC resistance for efficiency calculations in low-voltage applications. Evaluate the physical size constraints against the available board space for surface mount installation.
Fixed Inductors Part Context
This part belongs to the MWSA0605S series of shielded power inductors. The series offers various inductance values ranging from low microhenry to higher ranges, all sharing similar shielding characteristics and mounting profiles for consistent manufacturing processes.
Fixed Inductors Replacement Considerations
Cross-reference with other MWSA0605S variants for different inductance values if system requirements change. Verify compatibility with alternative suppliers offering identical 15 µH, 3.1 A specifications in the same form factor.
