MWSD1005C5N0BTM01

Fixed Inductors Overview

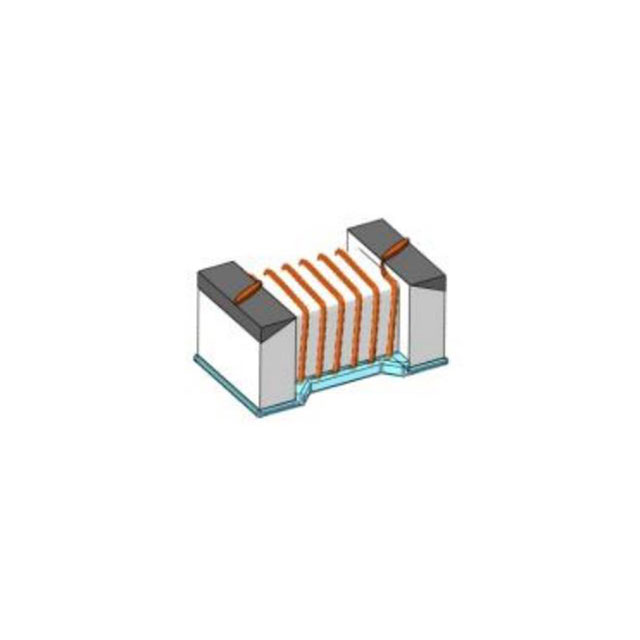

The MWSD1005C5N0BTM01 is a fixed surface-mount inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features a drum core, wire-wound construction with a ceramic magnetic core and no shielding. The component has an inductance of 5 nH with a tolerance of ±0.2 nH. It supports a maximum DC current of 600 mA and exhibits a maximum DC resistance of 120 milliohms. Designed for the 0402 (1005 metric) package measuring 1.10mm x 0.60mm x 0.65mm, it operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Utilizes a drum core, wire-wound structure with a ceramic magnetic core for stable high-frequency performance.
• Provides a compact 0402 surface-mount footprint suitable for space-constrained circuit board layouts.
• Features an unshielded design that minimizes parasitic effects for specific RF signal applications.

Fixed Inductors Applications

• RF matching networks in wireless communication modules
• Impedance matching circuits in mobile device antennas
• High-frequency filtering stages in consumer electronics

Fixed Inductors Procurement Notes

Verify the complete part number MWSD1005C5N0BTM01 against official Sunlord documentation to ensure correct inductance and tolerance specifications. Confirm the manufacturer source directly from authorized distributors or the original equipment manufacturer to avoid counterfeit components. Check the datasheet for moisture sensitivity level and reflow soldering profile requirements prior to assembly.

Fixed Inductors Selection Notes

Select this component when a precise 5 nH inductance value is required for high-frequency impedance matching. Consider the 600 mA current rating and 120 milliohm DCR for power handling capabilities. Ensure the unshielded nature aligns with the electromagnetic interference constraints of the target application environment.

Fixed Inductors Part Context

This component belongs to the MWSD-C-M series of multi-layer chip ceramic inductors produced by Shenzhen Sunlord Electronics Co., Ltd. The manufacturer specializes in passive electronic components, including chip inductors, capacitors, and filters. This series targets applications requiring small form factors and reliable high-frequency characteristics.

Fixed Inductors Replacement Considerations

Consult official Sunlord documentation for verified substitute part numbers within the same series or equivalent specifications. Cross-reference parameters such as inductance, tolerance, current rating, and physical dimensions before substituting.
