MWV1365S

Antennas RF Overview

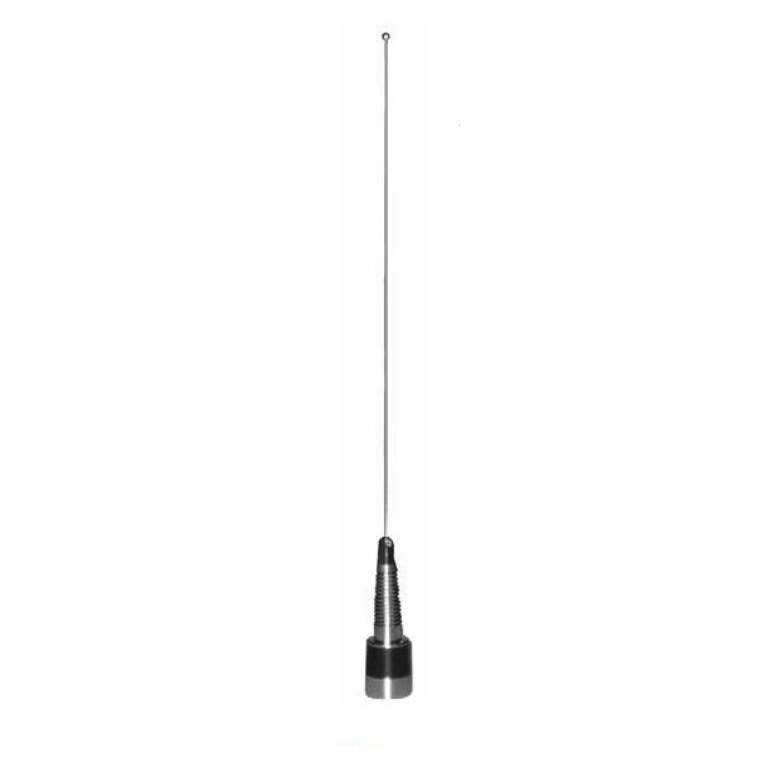

The MWV1365S is a VHF vehicle antenna from the Chrome Coil series, manufactured by Amphenol PCTEL. It operates within a frequency range of 136 MHz to 174 MHz with a center frequency of 138 MHz and a bandwidth of 38 MHz. The antenna features a stainless steel spring whip design with unity gain and a 50 Ohm impedance. It supports a power rating of 200 W and maintains a VSWR of 2.0:1. Mechanical specifications include a length of 20 inches and bracket mounting style. The unit weighs 300 g and functions between -40 C and +85 C.

Antennas RF Feature Summary

• Stainless steel spring whip construction for durability
• Wideband coverage without tuning requirements
• Bracket mount installation style

Antennas RF Applications

• Public safety mobile communications
• Transportation systems
• Utility vehicle communications
• Military mobile applications

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure correct connector type and base mount configuration. Confirm RoHS compliance status through official documentation before procurement. Check lead times as availability may vary. Ensure compatibility with existing vehicle mounting hardware. Validate environmental ratings against operational requirements.

Antennas RF Selection Notes

Select this model for applications requiring wideband VHF performance in mobile environments. The chrome coil design offers robust mechanical stability. Unity gain is suitable for general coverage needs. Verify that the 200 W power rating meets system requirements. Ensure the bracket mount style aligns with vehicle infrastructure.

Antennas RF Part Context

This component belongs to the Chrome Coil series of vehicle antennas designed by Amphenol PCTEL. The series focuses on providing reliable connectivity for mobile platforms. The MWV1365S specifically targets VHF band operations. It addresses interoperability challenges through superior bandwidth coverage. The product line emphasizes durability and ease of installation.

Antennas RF Replacement Considerations

Consider the BMWV1365S as a potential alternative if black finish is required instead of chrome. Both models share similar electrical characteristics and form factors. Verify mechanical dimensions and mounting interfaces before substitution. Ensure frequency ranges match application requirements.
