MX25U12843GBBI00

Memory IC Overview

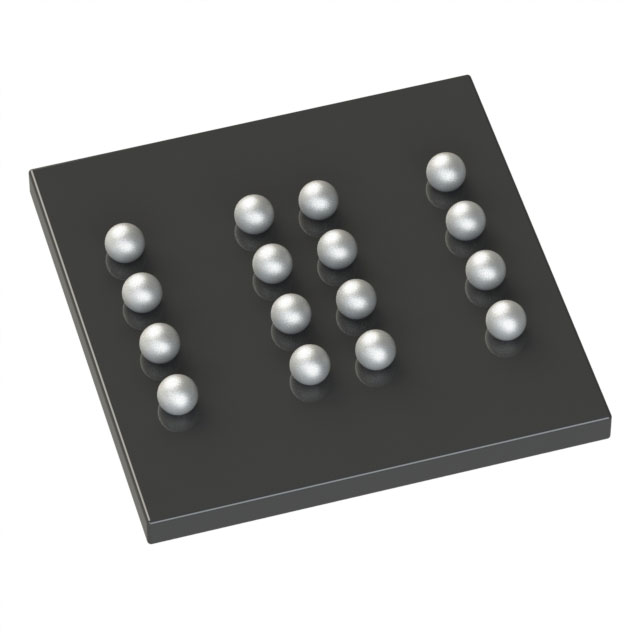

The MX25U12843GBBI00 is a 128M-bit CMOS Serial NOR Flash memory from Macronix, utilizing the MXSMIO technology. It operates on a single power supply ranging from 1.65V to 2.0V for all read, erase, and program operations. The device supports Single I/O, Dual I/O, and Quad I/O protocols, including Quad Peripheral Interface (QPI) and Double Transfer Rate (DTR) modes with clock frequencies up to 133MHz. It features a 16-ball WLCSP package and includes advanced security options such as block lock protection and a secured OTP area.

Memory IC Feature Summary

• Supports Single I/O, Dual I/O, and Quad I/O protocols with QPI and DTR modes
• Includes hardware write protection via WP# pin and software block lock protection
• Features a 4K-bit secured One-Time Programmable area for unique identifiers
• Provides program/erase suspend and resume capabilities

Memory IC Applications

• Firmware storage in embedded systems
• Code execution in XIP applications
• Data logging and configuration storage
• Secure identification in IoT devices

Memory IC Procurement Notes

Verify the specific suffix 'BB' corresponds to the 16-ball WLCSP package and lead-free RoHS compliance. Confirm that the ordering information matches the required dummy cycle configurations and voltage specifications. Ensure compatibility with the intended SPI controller interface regarding mode 0 and mode 3 support.

Memory IC Selection Notes

Select this component when a low-voltage 1.8V operation is required for space-constrained designs. The 16-ball WLCSP package offers a compact footprint suitable for mobile or portable electronics. Consider the DTR mode if higher data throughput is necessary without increasing the clock frequency significantly.

Memory IC Part Context

This part belongs to the MX25U12843G series of 128M-bit Serial NOR Flash memories. It is designed for high-reliability applications requiring robust data retention and endurance. The MXSMIO technology enables flexible interface options to optimize system performance and board space.

Memory IC Replacement Considerations

MX25U12843GBJI00: Supports DTR mode and similar interface options.

Memory IC FAQ

What is the function of the WP#/SIO2 pin?

It serves as an active-low hardware write protection input or functions as a serial data input/output pin in four I/O read mode.

How is the secured OTP area accessed?

Access requires entering the 4K-bit secured OTP mode using the ENSO command, followed by standard programming procedures, and exiting via the EXSO command.
