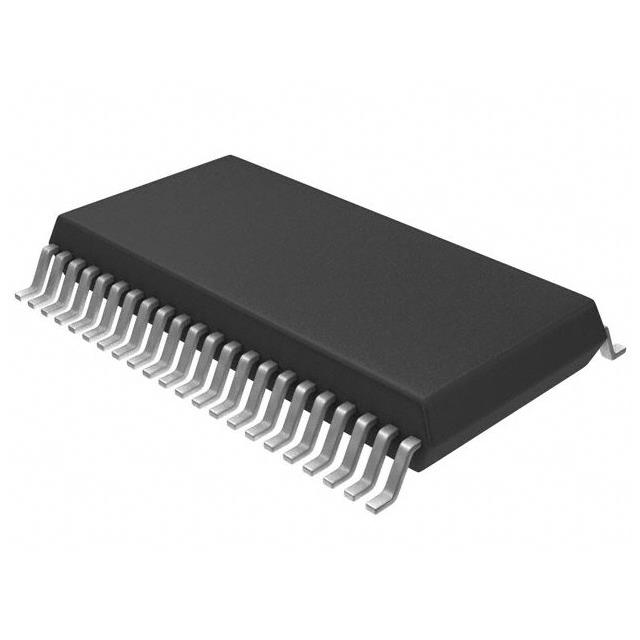

MX29F800CBMI-70G

Description：IC FLASH 8MBIT PARALLEL 44SOP
Series：MX29F
Mfr：Macronix
Package：Tube

SKU:7695fd2f9c19 Category: Memory IC Brand: Macronix

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MX29F800CBMI-70G is listed in the Memory IC range at ChipApex. The manufacturer field lists Macronix. Its product description is IC FLASH 8MBIT PARALLEL 44SOP. Review the specifications below when checking this part for your BOM.

Memory IC specifications for MX29F800CBMI-70G

Description：IC FLASH 8MBIT PARALLEL 44SOP
Series：MX29F
Mfr：Macronix
Package：Tube
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：8Mbit
Memory Organization：1M x 8
Memory Interface：Parallel
Clock Frequency：-
Write Cycle Time - Word, Page：70ns
Voltage - Supply：4.5V ~ 5.5V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：44-SOIC (0.496", 12.60mm Width)
Supplier Device Package：44-SOP
Access Time：70 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for MX29F800CBMI-70G

MX29F800CBMI-70G

Memory IC Overview

The MX29F800CBMI-70G is an 8 Mbit (1 Megabit x 8 or 512 Kilobit x 16) parallel NOR flash memory component manufactured by Macronix. It operates within a voltage range of 4.5V to 5.5V and features a maximum asynchronous access time of 70ns. The device utilizes a 48-pin TSOP package with surface mount installation. It supports a wide operating temperature range from -40°C to +85°C and includes hardware sector protection capabilities.

Memory IC Feature Summary

Supports parallel interface for direct code execution from memory
Includes hardware sector protection to prevent unauthorized program or erase operations
Features Ready/Busy pin for hardware detection of operation completion

Memory IC Applications

Embedded systems requiring direct code execution
Industrial control applications
Consumer electronics firmware storage

Memory IC Procurement Notes

Verify the specific suffix 'I' against official datasheets to confirm industrial temperature rating compliance. Ensure the 48-pin TSOP package dimensions match the target PCB footprint. Confirm that the 5V supply requirement aligns with the system power architecture before procurement.

Memory IC Selection Notes

Select this component when a 5V-only supply is available and parallel NOR architecture is required for XIP functionality. Compare against MX29LV series if 3V operation is necessary. Verify that the 70ns speed meets the processor bus timing requirements for the target application environment.

Memory IC Part Context

This part belongs to the MX29F series, which denotes single-voltage 5V NOR flash memories. It shares architectural similarities with the MX29LV series but differs in operating voltage specifications. The MX29F series is designed for applications where 5V power rails are standard.
