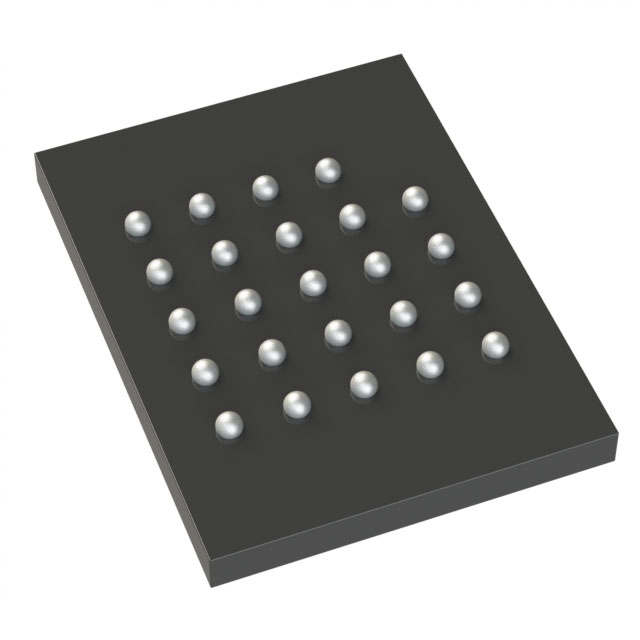

MX75U25690FXDR02 is listed in the Memory IC range at ChipApex. The manufacturer field lists Macronix. Its product description is IC FLASH 256MBIT SPI 24CSPBGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for MX75U25690FXDR02
- Description：IC FLASH 256MBIT SPI 24CSPBGA
- Series：MXSMIO™
- Mfr：Macronix
- Package：Tray
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR
- Memory Size：256Mbit
- Memory Organization：64M x 4
- Memory Interface：SPI
- Clock Frequency：120 MHz
- Write Cycle Time - Word, Page：-
- Voltage - Supply：1.65V ~ 2V
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Package / Case：24-TBGA
- Supplier Device Package：24-CSPBGA (6x8)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for MX75U25690FXDR02
Memory IC Overview
The MX75U25690FXDR02 is a 256Mbit Serial NOR Flash memory IC from the MXSMIO series by Macronix. It features a 120 MHz clock frequency and supports SPI interface with 4-bit I/O capability. The device utilizes a 24-CSPBGA (6x8) package and operates within a supply voltage range of 1.65V to 2V. It is designed for automotive applications, supporting an extended operating temperature range from -40°C to +105°C.
Memory IC Feature Summary
- Supports high-speed serial peripheral interface operations up to 120 MHz
- Designed for automotive environments with extended temperature rating
- Utilizes compact 24-pin CSPBGA surface mount packaging
Memory IC Applications
- Automotive infotainment systems
- Advanced driver assistance systems (ADAS)
- Vehicle telematics units
Memory IC Procurement Notes
Verify component authenticity through authorized channels due to potential counterfeit risks in the semiconductor market. Confirm RoHS3 compliance and AEC-Q100 qualification status if required for specific automotive certifications. Check current availability as supply constraints may affect lead times. Ensure proper handling procedures are followed given the moisture sensitivity level classification.
Memory IC Selection Notes
Select this component when high-speed data access is required in space-constrained automotive designs. The low voltage operation suits battery-powered or energy-efficient systems. Consider the CSPBGA package requirements for PCB layout and reflow soldering profiles. Evaluate thermal management needs given the extended temperature range capabilities.
Memory IC Part Context
This part belongs to Macronix's MX75U series, specifically engineered for automotive-grade reliability. The MXSMIO family emphasizes performance and security features suitable for modern vehicle electronics. The 256Mbit capacity provides sufficient storage for firmware and application data in connected car architectures.
Memory IC Replacement Considerations
Check for direct pin-compatible alternatives within the same Macronix MX75U family. Verify that any substitute maintains identical voltage ranges and temperature specifications. Ensure interface compatibility with existing system controllers before implementation.
