MXO45HST-2I-48M000000

Oscillators Overview

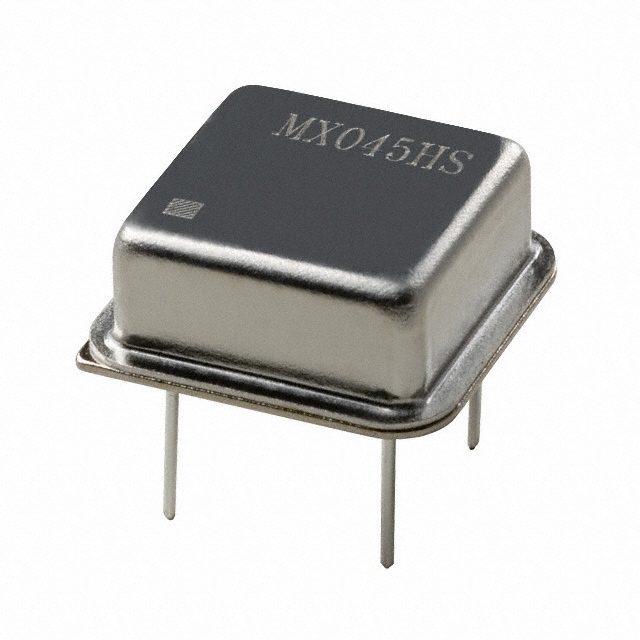

The MXO45HST-2I-48M000000 is a standard crystal oscillator from the MXO45HS series manufactured by CTS-Frequency Controls. It operates at a frequency of 48 MHz with a stability of ±100 ppm. The device supports HCMOS and TTL output formats and functions on a 5V supply voltage. It features an enable/disable control function and draws a maximum current of 60 mA during operation, reducing to 10 µA in disabled mode. The component utilizes a through-hole mounting type within an 8-DIP package (4 leads, half-size metal can) measuring 13.20 mm x 13.20 mm. It is rated for an industrial operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Provides stable clock signals via integrated crystal oscillator technology
• Supports digital logic interfacing through compatible HCMOS and TTL outputs
• Includes power management capabilities with active enable and low-power disable modes

Oscillators Applications

• Industrial control systems requiring precise timing references
• Data communication equipment utilizing standard serial protocols
• Embedded computing platforms needing reliable clock sources
• Test and measurement instrumentation circuits

Oscillators Procurement Notes

Verify that the specific suffix '2I' corresponds to the required industrial temperature grade (-40°C to +85°C) rather than commercial variants. Confirm the 8-DIP half-size metal can package dimensions match the target PCB footprint. Ensure the 5V supply voltage aligns with system power rails. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Oscillators Selection Notes

Select this component when an industrial-grade temperature range is mandatory for the application environment. Choose this model over commercial versions if operational reliability between -40°C and +85°C is required. Consider the through-hole mounting requirement against available surface-mount alternatives. Verify that the 60 mA maximum current consumption fits within the system's power budget constraints.

Oscillators Part Context

This part belongs to the MXO45HS series of hybrid circuit oscillators. It shares architectural similarities with other models like MXO45HST-2C-48M000000 but differs in temperature rating and potentially internal tuning. The series offers various frequencies and packages, providing flexibility for different design needs while maintaining consistent output interface standards.

Oscillators Replacement Considerations

MXO45HST-2C-48M000000 serves as a direct substitute if the commercial temperature range suffices. MXO45T-2C-48M000000 offers a full-size DIP alternative with identical electrical parameters. Verify pin compatibility and thermal performance when swapping between half-size and full-size metal can packages.
