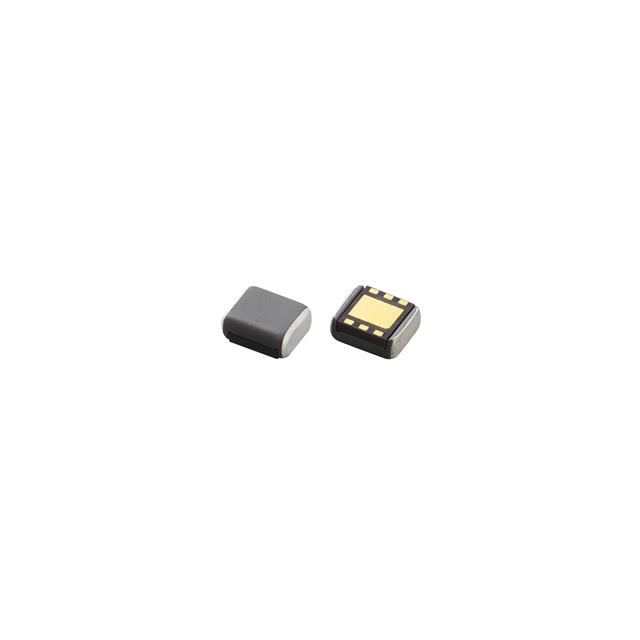

MYRGP180060W21RC

MYRGP180060W21RC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is 0.6A, NON-ISOLATED POL DC/DC CON. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MYRGP180060W21RC

• Description：0.6A, NON-ISOLATED POL DC/DC CON
• Series：MYRGP-W-RC
• Mfr：Murata Power Solutions Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2V
• Voltage - Input (Max)：6V
• Voltage - Output 1：1.8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Surface Mount
• Package / Case：8-PowerTDFN Module
• Size / Dimension：0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for MYRGP180060W21RC
