Product Detailed Parameters
- Description：FERRITE BEAD 600 OHM 0603 1LN
- Series：MZ
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power, Signal Line
- Number of Lines：1
- Impedance @ Frequency：600 Ohms @ 100 MHz
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：450mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.039" (1.00mm)
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Features：-
Download product information
Overview

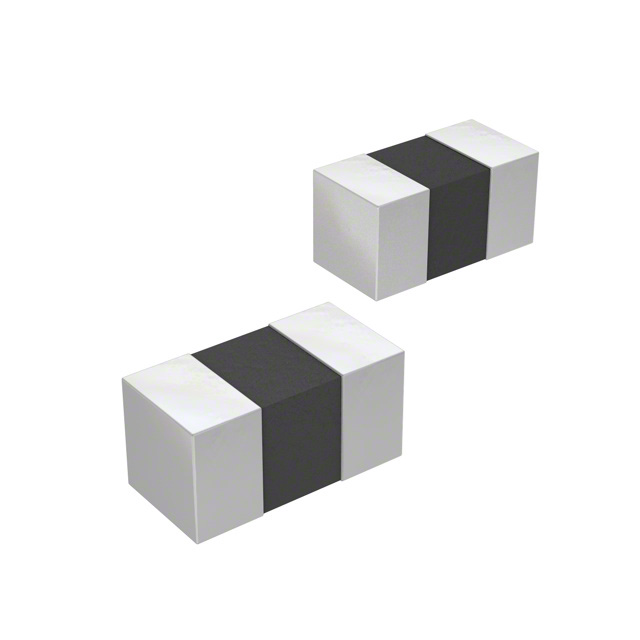

The Bourns MZ1608-601Y is a surface-mount ferrite bead designed for EMI suppression in power and signal lines. It features a 0603 (1608 metric) package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component exhibits an impedance of 600 Ohms at 100 MHz with a tolerance of ±25%. It supports a maximum DC current rating of 100 mA and has a maximum DC resistance of 450 mOhms.
Feature Summary
- Provides electromagnetic interference suppression for sensitive circuits
- Compact surface-mount design suitable for space-constrained layouts
- Non-shielded construction for general-purpose filtering applications
Applications
- Power line filtering in portable electronics
- Signal line noise suppression in communication devices
- EMI mitigation in consumer hardware
Procurement Notes
Verify the specific suffix 'Y' against the manufacturer's latest datasheet to confirm packaging configuration and material compliance status. Ensure the selected variant matches the required impedance tolerance and current rating for the target circuit design before finalizing procurement orders.
Selection Notes
Select this component when a compact ferrite solution is needed for low-current signal or power lines. The 0603 footprint allows for high-density PCB placement. Confirm that the 100 mA current rating meets the operational requirements of the application to prevent saturation or excessive heating during normal operation.
Part Context
This part belongs to the Bourns MZ series of ferrite beads, which are engineered for general-purpose EMI suppression. The series offers various impedance values and package sizes to accommodate different filtering needs in modern electronic designs, balancing performance with physical size constraints.
Replacement Considerations
Cross-reference with other 0603 ferrite beads offering similar 600 Ohm impedance at 100 MHz. Verify that substitute components maintain equivalent DC resistance and current handling capabilities to ensure circuit compatibility without redesign.
