MZAS1005G221-R70TF

Overview

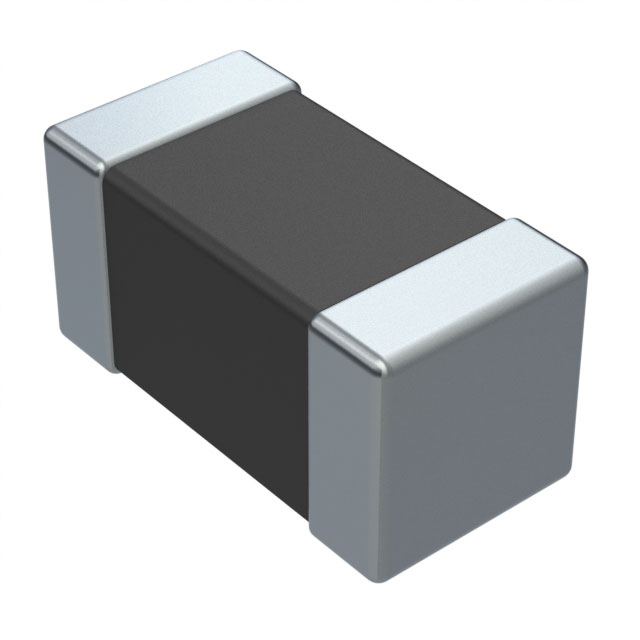

The MZAS1005G221-R70TF is a surface-mount ferrite bead manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features a 0402 (1005 metric) package with dimensions of 1.00 x 0.50 mm and a height of 0.50 mm. The component provides an impedance of 220 Ω at 100 MHz with a tolerance of ±25%. It supports a rated current of 700 mA and has a maximum DC resistance of 0.4 Ω. The device operates within a temperature range of -55°C to +125°C and carries a Moisture Sensitivity Level (MSL) rating of 1.

Feature Summary

• Provides signal filtering through high impedance characteristics in the RF spectrum
• Designed for surface mount technology integration on printed circuit boards
• Constructed for general consumer electronic applications

Applications

• Data line filtering
• General consumer electronics
• Signal integrity management

Procurement Notes

Verify the manufacturer part number against official Sunlord documentation to confirm specifications. Ensure the ordering suffix matches the required tape and reel packaging configuration. Check for any specific handling requirements related to the component's moisture sensitivity level during storage and assembly processes.

Selection Notes

Select this component when a compact 0402 footprint is required for data line filtering. Consider the 700 mA current rating and 220 Ω impedance at 100 MHz for compatibility with the target circuit design. Verify that the operating temperature range meets the environmental conditions of the final application.

Part Context

This ferrite bead belongs to the Sunlord passive component portfolio, which includes chip inductors, varistors, and common mode chokes. The manufacturer specializes in e-components for various electronic industries. This specific model is part of their standard surface-mount filter series designed for space-constrained designs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
