N-F-12.000M-12-2020-2070-150

Crystals Overview

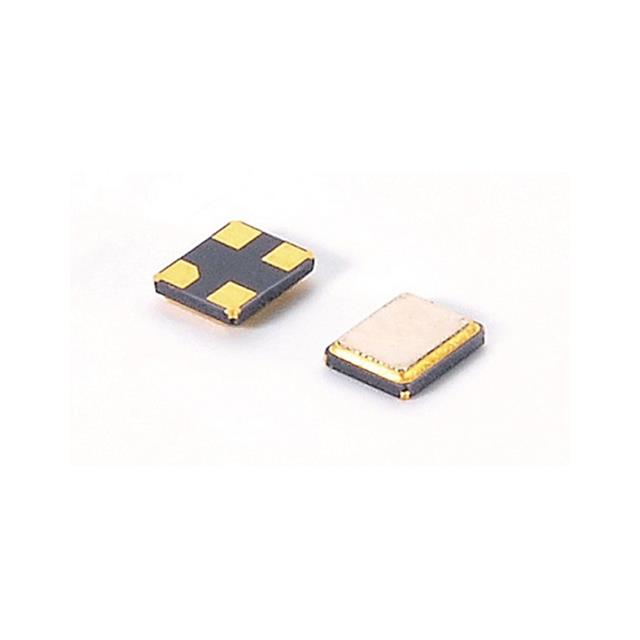

The N-F-12.000M-12-2020-2070-150 is a quartz crystal resonator manufactured by CEC Xtal, designed for surface-mount applications. It operates at a fundamental frequency of 12 MHz with a load capacitance of 12 pF. The component features a frequency stability of ±20 ppm and utilizes a 4-SMD, No Lead package configuration. This device is part of the standard SMD Crystal Resonators product line offered by the manufacturer.

Crystals Feature Summary

• Surface-mount design compatible with automated assembly processes
• Fundamental mode operation for precise timing control
• Standardized 4-SMD footprint for board integration

Crystals Applications

• General-purpose clock signal generation in electronic circuits
• Timing reference sources for microcontroller systems
• Frequency stabilization in consumer electronics devices

Crystals Procurement Notes

Verify the specific manufacturing source and datasheet availability directly with CEC Xtal or authorized distributors. Confirm that the part number matches the exact electrical specifications required for your design, particularly the ±20 ppm stability and 12 pF load capacitance. Ensure compatibility with your PCB layout constraints regarding the 4-SMD package dimensions before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 12 MHz fundamental frequency with ±20 ppm stability is required for surface-mount designs. The 12 pF load capacitance must match the oscillator circuit requirements. Consider the 4-SMD package size for space-constrained applications. Verify temperature range and aging characteristics against specific application needs if not detailed in the primary documentation.

Crystals Part Context

This part belongs to the SMD Crystal Resonators category from CEC Xtal, a manufacturer specializing in quartz-based timing devices. The N-F series designation indicates a specific family of surface-mount crystals. These components are widely used in various electronic applications requiring stable frequency references.

Crystals Replacement Considerations

Direct substitutes should maintain identical frequency (12 MHz), load capacitance (12 pF), stability (±20 ppm), and package type (4-SMD). Cross-reference with other manufacturers offering equivalent SMD crystals to ensure pinout and dimensional compatibility.
