N-F-25.000M-10-3030-4085-60

Crystals Overview

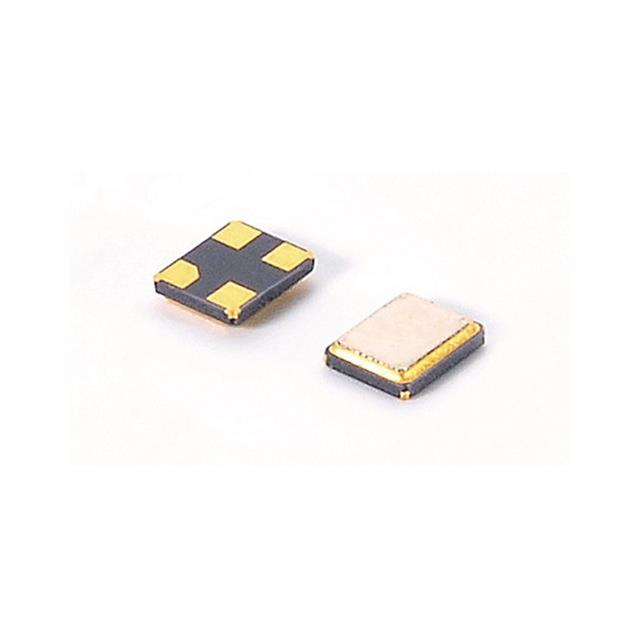

The N-F-25.000M-10-3030-4085-60 is a crystal resonator manufactured by CEC Xtal, operating at a nominal frequency of 25 MHz. It features a load capacitance of 10 pF and a frequency stability tolerance of ±30 ppm. The component utilizes a 4-SMD, No Lead package with dimensions corresponding to the 3030 metric size (3.0 mm x 3.0 mm). It is designed for surface mount applications and operates within a temperature range of -40°C to +85°C.

Crystals Feature Summary

• Provides stable 25 MHz oscillation with ±30 ppm frequency stability
• Designed for surface mount integration via 4-SMD no lead configuration
• Operates reliably across an extended industrial temperature range

Crystals Applications

• General clock signal generation in electronic circuits
• Timing reference for microcontroller systems
• Frequency control in communication modules

Crystals Procurement Notes

Verify that the specific part number matches the required load capacitance and stability specifications for the target circuit design. Confirm the package footprint aligns with the PCB layout constraints. Ensure the operating temperature range meets the environmental requirements of the final application. Cross-reference manufacturer documentation for detailed mechanical drawings and soldering recommendations.

Crystals Selection Notes

Select this component when a 25 MHz crystal with ±30 ppm stability is required. The 10 pF load capacitance must match the oscillator circuit design. The 4-SMD package suits automated surface mount assembly processes. Consider the -40°C to +85°C range for standard industrial environments.

Crystals Part Context

This part belongs to the CEC Xtal crystal resonator family, which includes various frequency devices such as thermal crystals and ordinary oscillators. CEC Panda Crystal Technology Corporation manufactures these components, focusing on crystal technology within the Information Industry Group. The product line covers a broad spectrum of frequency control solutions for diverse electronic applications.
