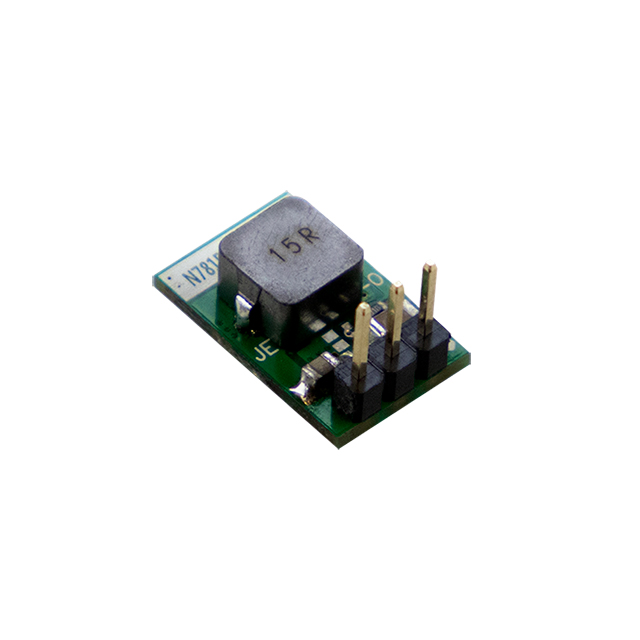

N7812-1PH

N7812-1PH is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER +/-12V 17W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for N7812-1PH

• Description：DC DC CONVERTER +/-12V 17W
• Series：N78 (12W)
• Mfr：MEAN WELL USA Inc.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：2
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：300mA, 1A
• Power (Watts)：17 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95.50%
• Mounting Type：Through Hole, Right Angle
• Package / Case：3-SIP Module
• Size / Dimension：0.63" L x 0.41" W x 0.30" H (16.0mm x 10.5mm x 7.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for N7812-1PH
