NA-100M-6911

Oscillators Overview

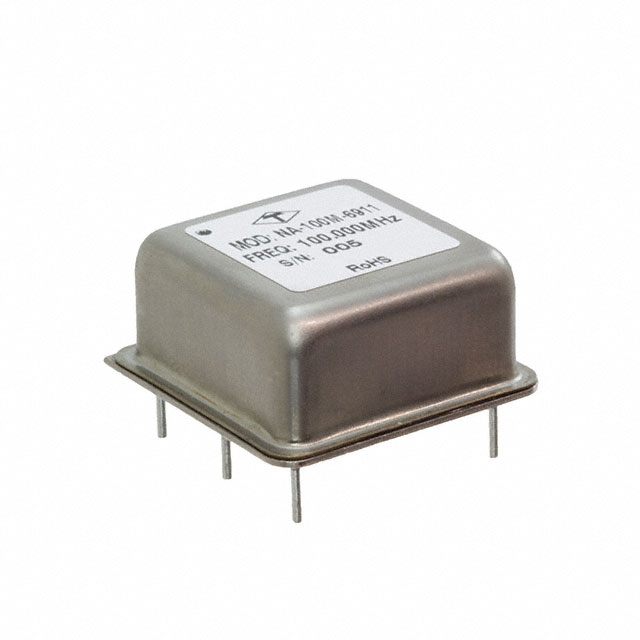

The Taitien NA-100M-6911 is a 100MHz Ultra Low Noise/Low G-Sensitivity OCXO. It operates on a 5V supply with a maximum current of 950mA. The device provides a sine wave output and features frequency stability of ±50ppb across the full temperature range. Operating temperatures span from -20°C to +70°C. The component utilizes a DIP-5 package with through-hole mounting, measuring 25.78mm x 25.78mm in size and 12.70mm in height.

Oscillators Feature Summary

• Ultra low noise performance for precise timing applications
• Low g-sensitivity design ensuring signal integrity under mechanical stress
• High frequency stability of ±50ppb over the operating temperature range

Oscillators Applications

• FPGA timing systems requiring high-speed data handling
• Precision measurement equipment demanding stable clock sources
• Telecommunications infrastructure utilizing robust oscillators

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure compatibility with required voltage and output specifications. Confirm that the DIP-5 through-hole package aligns with your PCB layout constraints. Check RoHS3 compliance status if environmental regulations apply to your manufacturing process. Ensure the 5V supply requirement matches your system power architecture before procurement.

Oscillators Selection Notes

Select this component when ultra-low phase noise and minimal g-sensitivity are critical for system performance. The ±50ppb stability makes it suitable for applications where long-term frequency drift must be minimized. Consider the 5V supply and 950mA current draw for power budget calculations. The through-hole DIP-5 package dictates specific board space and assembly method requirements compared to surface-mount alternatives.

Oscillators Part Context

This oscillator belongs to Taitien's NA-100M series of oven-controlled crystal oscillators. The series focuses on delivering high stability and low noise characteristics for demanding electronic applications. Similar models within the family may offer variations in frequency or package type while maintaining core performance attributes like low g-sensitivity.

Oscillators Replacement Considerations

NA-100M-6800

Oscillators FAQ

What is the output waveform type?

The NA-100M-6911 produces a sine wave output.

Is the device compliant with RoHS standards?

Yes, the product is RoHS3 compliant.
