NA-10M-2004

Oscillators Overview

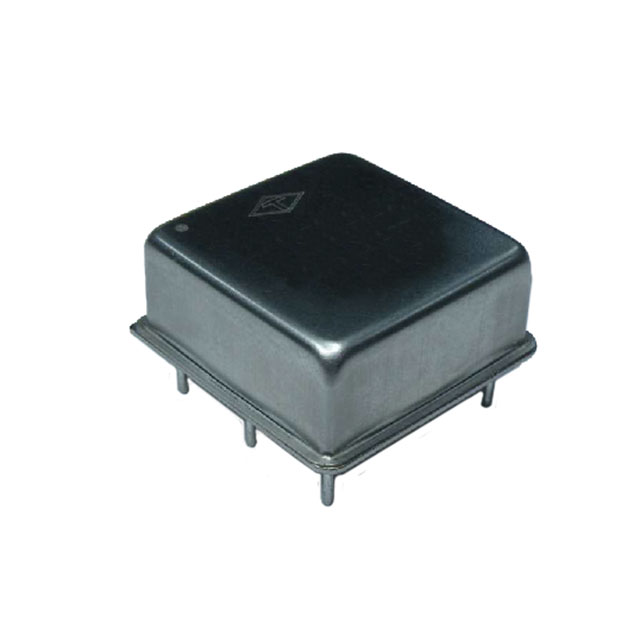

The NA-10M-2004 is an Oven Controlled Crystal Oscillator (OCXO) manufactured by Taitien. It operates at a nominal frequency of 10 MHz with LVTTL output logic levels. The device requires a 3.3V supply voltage and utilizes a 6-DIP package measuring 0.750 inches (19.05mm) in width with five leads. This component is designed for applications requiring high frequency stability.

Oscillators Feature Summary

• Provides oven-controlled temperature compensation for stable frequency output
• Features LVTTL digital output interface
• Utilizes low-voltage 3.3V power supply operation

Oscillators Applications

• Telecommunications base stations
• Precision test and measurement equipment
• Navigation systems

Oscillators Procurement Notes

Verify the specific package dimensions and lead configuration against the official Taitien datasheet to ensure compatibility with the target PCB footprint. Confirm that the 3.3V supply requirement aligns with the system power architecture. Check for RoHS compliance status if environmental regulations apply to the end product.

Oscillators Selection Notes

Select this OCXO when high frequency stability is required over varying temperatures compared to standard XO or TCXO solutions. Ensure the design accommodates the thermal management needs of an oven-controlled unit. Verify that the LVTTL output swing matches the input requirements of the downstream circuitry.

Oscillators Part Context

This part belongs to Taitien's NA-10M series of Oven Controlled Crystal Oscillators. The series offers various voltage options and package types, with the NA-10M-2004 specifically designated for 3.3V operation in a DIP package. Taitien specializes in frequency control products including crystals and oscillators.

Oscillators Replacement Considerations

Compatible alternatives within the same series include NA-10M-2805 (12V version) and NA-10M-2051 (3.3V version). Verify pinout and electrical specifications before substitution.
