NA-10M-6810

Oscillators Overview

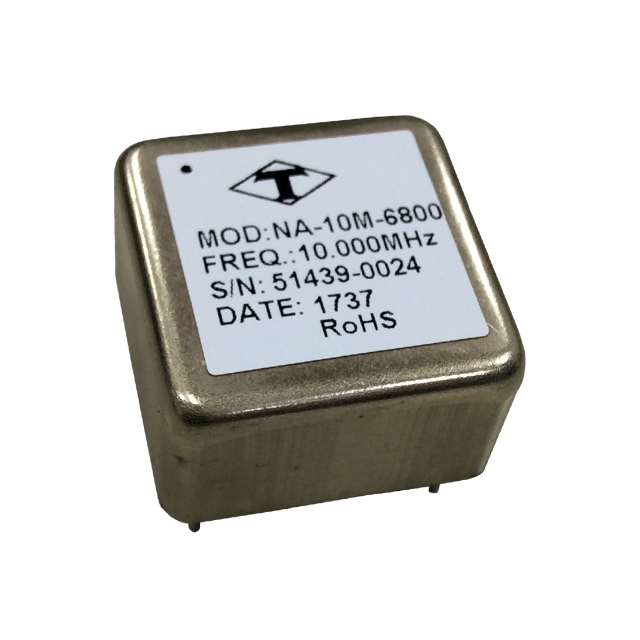

The Taitien NA-10M-6810 is a 10 MHz Oven Controlled Crystal Oscillator (OCXO) designed for high-stability applications. It features a sine wave output and operates on a 12V supply with a maximum current consumption of 400mA. The device offers a frequency stability of ±30ppb and functions within an operating temperature range of -20°C to 70°C. It utilizes a 6-DIP package with five leads, measuring 0.750 inches in width.

Oscillators Feature Summary

• High frequency stability with ±30ppb accuracy
• Low noise and low g-sensitivity design
• Sine wave output signal generation
• Oven-controlled crystal oscillator technology

Oscillators Applications

• Precision timing systems requiring stable reference clocks
• Telecommunications infrastructure equipment
• Test and measurement instrumentation
• Navigation and positioning systems

Oscillators Procurement Notes

Verify the specific model suffix against official Taitien documentation to ensure compatibility with required voltage levels and output types. Confirm that the 12V supply requirement aligns with system power constraints. Check lead times as manufacturing schedules may vary. Ensure environmental specifications meet operational temperature needs.

Oscillators Selection Notes

Select this component when sine wave output is required rather than digital logic levels. Consider the ±30ppb stability specification against application tolerance requirements. Evaluate the 12V power supply availability versus lower voltage alternatives like the NA-10M-2005 series if power efficiency is critical. Assess thermal management needs for the oven-controlled operation.

Oscillators Part Context

This part belongs to the Taitien OCXO family, distinguished by its specific output waveform and stability metrics. Unlike LVTTL variants in the same frequency range, it provides analog sine wave outputs suitable for RF applications. The 6-DIP package facilitates through-hole mounting in standard industrial enclosures.

Oscillators Replacement Considerations

Direct substitutes include other Taitien models such as NA-10M-6830 for similar performance profiles. Cross-reference with NI-10M-2805 only if LVTTL output is acceptable despite different packaging dimensions.
