NA-10M-6832

Oscillators Overview

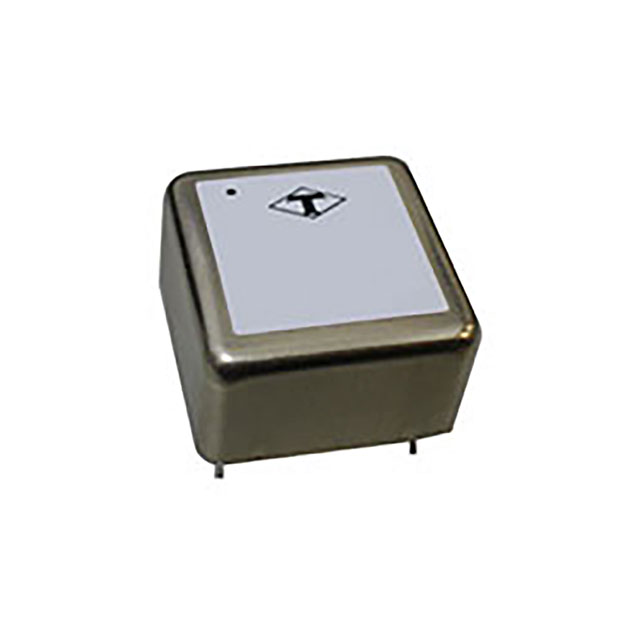

The Taitien NA-10M-6832 is a 10 MHz Oven Controlled Crystal Oscillator (OCXO) designed for high-stability frequency generation. It operates on a 12V supply voltage and features a sine wave output signal. The device utilizes a 6-DIP package with five leads, measuring 0.750 inches (19.05mm) in size. It provides a frequency stability of ±10ppb and functions within an operating temperature range of -20°C to 70°C.

Oscillators Feature Summary

• High frequency stability with ±10ppb precision
• Sine wave output signal configuration
• Dedicated oven control for thermal consistency

Oscillators Applications

• Telecommunications base stations
• Precision test and measurement equipment
• Navigation and GPS systems

Oscillators Procurement Notes

Verify the specific suffix code against official Taitien documentation to confirm pinout compatibility and electrical specifications. Ensure the procurement channel sources genuine components from authorized distributors to guarantee performance integrity and traceability.

Oscillators Selection Notes

Select this model when sine wave output is required alongside ultra-high stability. Compare against LVTTL or LVPECL variants if digital interfaces are preferred. Confirm that the 12V supply requirement aligns with the system power architecture before integration.

Oscillators Part Context

This component belongs to Taitien's OCXO family, which includes models like NA-10M-2005 and NA-10M-6830. While sharing the 10MHz core frequency, the NA-10M-6832 is distinct due to its 12V operation and analog sine wave output, differentiating it from lower-voltage digital output counterparts.

Oscillators Replacement Considerations

Direct substitutes include other 10MHz OCXOs with identical 12V sine wave specifications. Verify mechanical footprint compatibility with the 6-DIP 0.750 inch package. Cross-reference stability metrics to ensure ±10ppb requirements are met by alternative manufacturers.
