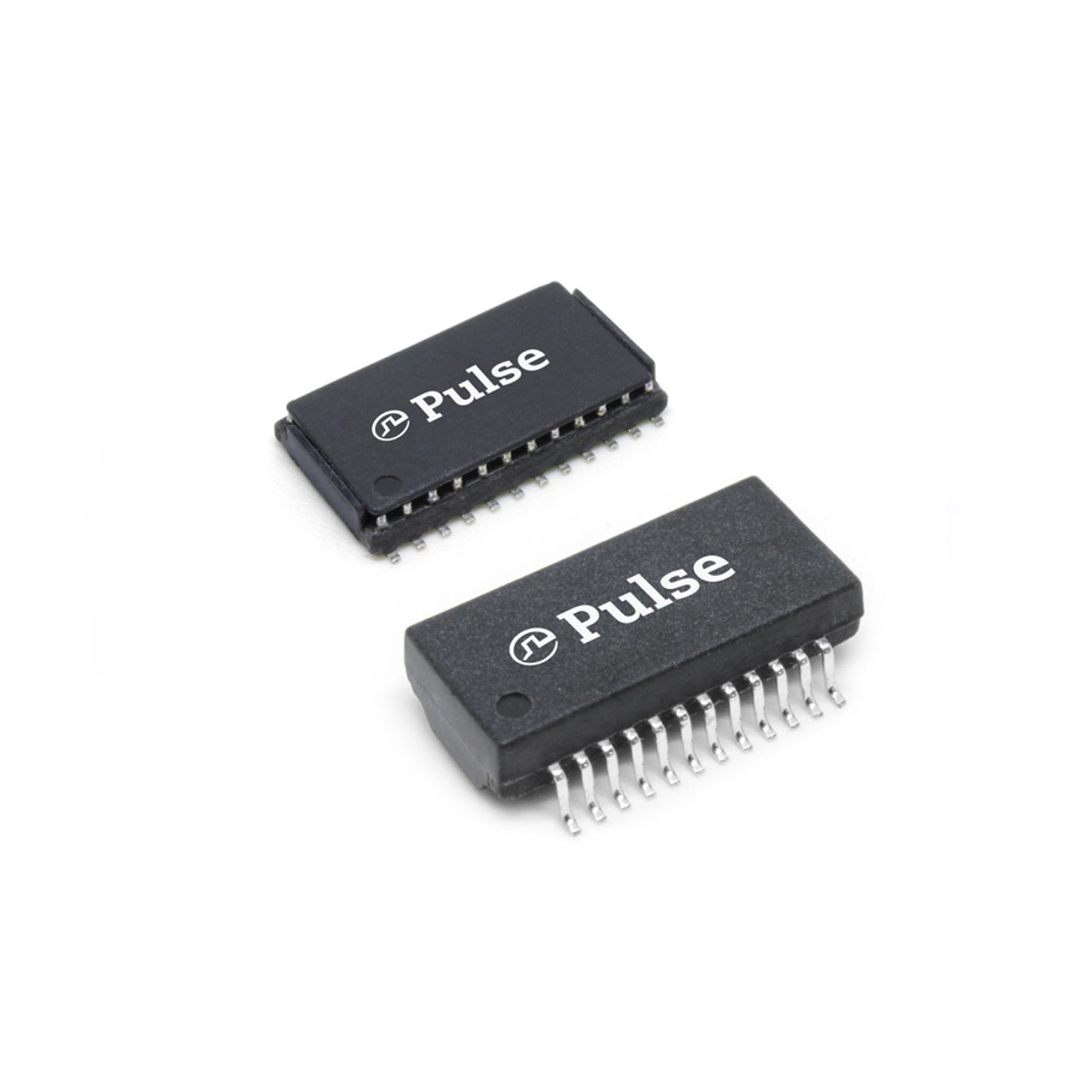

NA0069R LF

$6.39

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8f412f9df474 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL 1G SINGLE PORT N/A
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.614" L x 0.335" W (15.60mm x 8.50mm)
Height - Seated (Max)：0.091" (2.30mm)
Operating Temperature：0°C ~ 70°C

Download product information

NA0069R LF

Overview

The NA0069R LF is a single-port pulse transformer manufactured by Pulse Electronics, designed for LAN 1000 Base-T applications. It features an inductance of 350µH and supports a turns ratio of 1:1CT for both transmitter and receiver circuits. The component operates within a temperature range of 0°C to +70°C and includes isolation capabilities rated at 1500Vrms. It is available in a surface-mount package with dimensions of 0.614 inches in length and 0.335 inches in width.

Feature Summary

Designed specifically for Gigabit Ethernet (LAN 1000 Base-T) signal transmission
Provides electrical isolation between circuit segments
Supports balanced differential signaling for data integrity

Applications

Gigabit Ethernet network interface cards
Ethernet switch ports
Network adapter modules

Procurement Notes

Verify the specific suffix designation against the manufacturer's current datasheet to ensure compatibility with required isolation voltage and thermal specifications. Confirm that the surface-mount footprint matches the target PCB layout dimensions of 15.60mm x 8.50mm prior to integration.

Selection Notes

Select this component for designs requiring a single-port solution for 1000Base-T connectivity. Ensure the operating environment stays within the specified 0°C to +70°C range. Consider the physical size constraints relative to other available magnetic module options from the manufacturer.

Part Context

This part belongs to the family of magnetic modules produced by Pulse Electronics for high-speed digital communication interfaces. It serves as a critical passive component for impedance matching and common-mode noise rejection in Ethernet PHY connections.

Replacement Considerations

Consult official substitution lists for equivalent single-port transformers with matching 350µH inductance and 1500Vrms isolation ratings. Verify pinout compatibility before replacing existing inventory.
