NAC-30-222

Power Line Filter Modules Overview

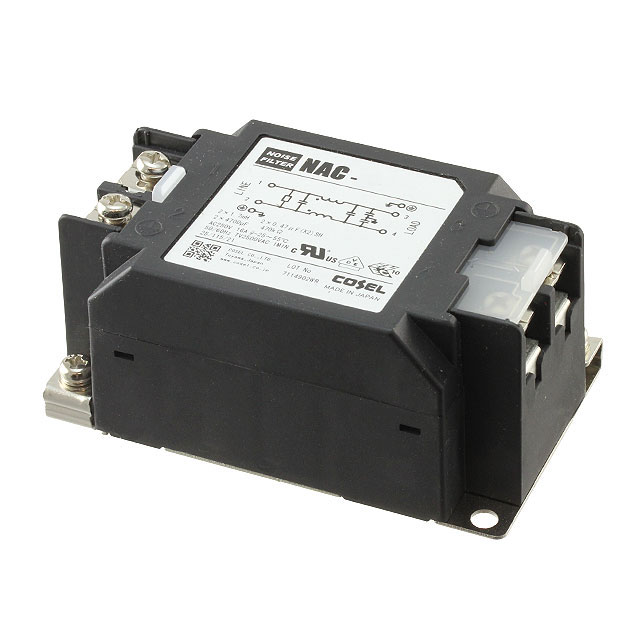

The NAC-30-222 is a single-phase EMC/EMI line filter module manufactured by Cosel USA, Inc. Designed for power line filtering applications, this component supports an AC voltage rating of up to 250V and a DC voltage rating of 250V. It features a continuous current capacity of 30A. The unit utilizes a terminal block connection method for installation. This specific model belongs to the NAC series of power line filter modules.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression architecture
• Terminal block interface for secure electrical connections
• Designed for integration into AC and DC power distribution systems

Power Line Filter Modules Applications

• Industrial machinery power input protection
• Commercial equipment EMI mitigation
• Power supply unit input filtering

Power Line Filter Modules Procurement Notes

Verify the exact part number suffix against official Cosel documentation to ensure correct voltage and current ratings. Confirm mounting requirements and terminal block specifications match the target system design. Request the latest datasheet to validate environmental operating ranges before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when a 30A current rating and 250V voltage capability are required for single-phase noise reduction. Ensure the terminal block connection style aligns with existing wiring infrastructure. Compare performance characteristics against similar models in the NAC series if space or specific attenuation curves differ from project requirements.

Power Line Filter Modules Part Context

This component is part of the NAC series of power line filter modules produced by Cosel USA, Inc. The series offers various configurations for different current and voltage requirements. The NAC-30-222 specifically addresses high-current single-phase applications requiring standardized terminal block connectivity for reliable power line filtering.

Power Line Filter Modules Replacement Considerations

Consult official Cosel documentation for direct substitutes within the NAC series. Verify that alternative models maintain identical 30A current ratings and 250V voltage limits. Ensure physical dimensions and terminal block types are compatible with existing mounting structures.
