NANE10X84WTMW2R45G3RF

Antennas RF Overview

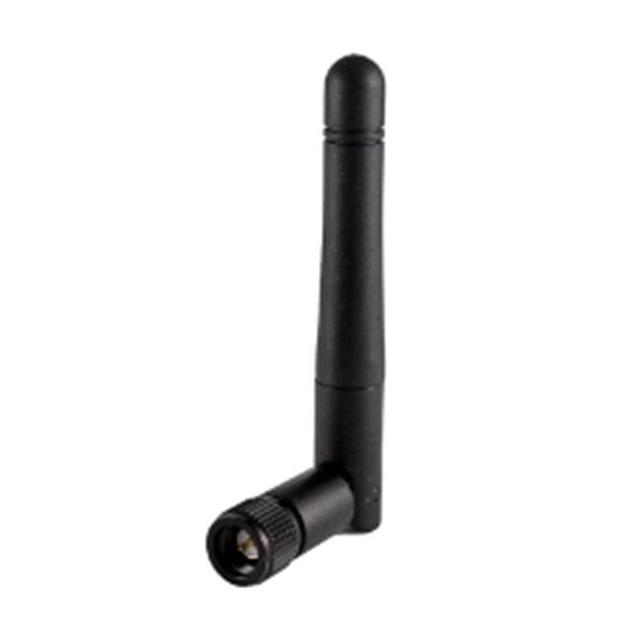

The NANE10X84WTMW2R45G3RF is an RF antenna manufactured by NIC Components Corp, designed for Wi-Fi and WLAN applications. It features a whip-style configuration with an RP-SMA male connector for mounting purposes. This component facilitates wireless connectivity in electronic devices requiring reliable signal transmission and reception within standard wireless local area network frequency bands.

Antennas RF Feature Summary

• Whip-style design optimized for Wi-Fi and WLAN signal performance
• Equipped with an RP-SMA male connector for secure mounting integration

Antennas RF Applications

• Wi-Fi enabled consumer electronics
• WLAN access point hardware
• Wireless communication modules

Antennas RF Procurement Notes

Verify the specific connector type and mechanical dimensions against your device enclosure requirements before ordering. Confirm that the RP-SMA male interface matches your PCB or cable assembly layout. Ensure the antenna's frequency range aligns with your target Wi-Fi or WLAN standards to guarantee proper signal integrity and regulatory compliance during final product validation.

Antennas RF Selection Notes

Select this model when a dedicated external whip antenna is required for Wi-Fi or WLAN systems. The RP-SMA male connector offers a standardized interface for easy integration into various chassis designs. Consider the physical space available for the whip element and ensure the mounting location does not obstruct signal propagation paths for optimal network performance.

Antennas RF Part Context

NIC Components Corp produces passive components including antennas, capacitors, and resistors. This antenna falls under their RF product category, supporting wireless connectivity solutions. The company partners with Nippon Industries Co. Ltd. for manufacturing, leveraging decades of experience in passive component design and production for global markets.

Antennas RF Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify compatibility with existing connectors if considering alternative vendors. Consult manufacturer catalogs for similar whip antennas with matching RP-SMA interfaces and frequency specifications.
