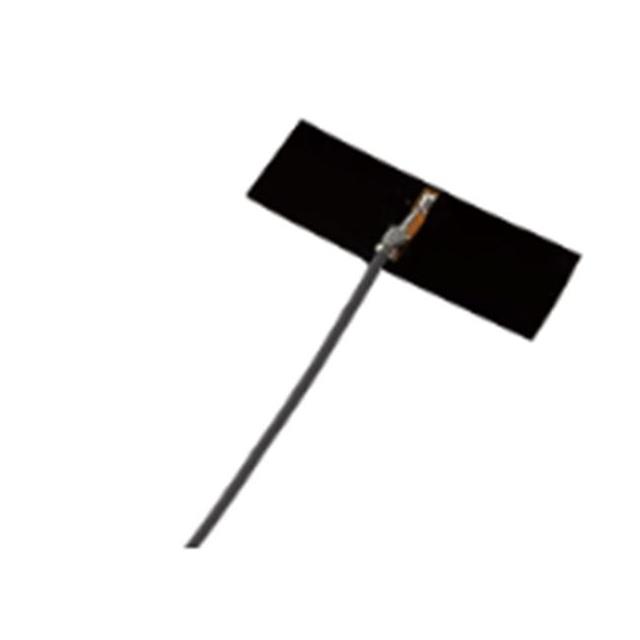

NANF30X10AMW2R45G3X180AVF is listed in the Antennas RF range at ChipApex. The manufacturer field lists NIC Components Corp. Its product description is RF ANT FPC 30X10 2.4GHz WIFI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NANF30X10AMW2R45G3X180AVF
- Description：RF ANT FPC 30X10 2.4GHz WIFI
- Series：NANF
- Mfr：NIC Components Corp
- Package：Bulk
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 7GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：PCB Trace
- Number of Bands：3
- VSWR：2.5, 2, 2.3
- Return Loss：-
- Gain：2.4dBi, 4.6dBi, 6.3dBi
- Features：-
- Termination：IPEX1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.400" (10.15mm)
- Applications：Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for NANF30X10AMW2R45G3X180AVF
Antennas RF Overview
The NANF30X10AMW2R45G3X180AVF is a PCB trace antenna designed for Wi-Fi and WLAN applications. Manufactured by NIC Components Corp, this component integrates an IPEX1 connector interface directly onto the circuit board. It utilizes adhesive mounting technology for secure attachment to substrates. The device supports standard wireless communication protocols requiring compact RF solutions.
Antennas RF Feature Summary
- Integrated PCB trace antenna structure optimized for Wi-Fi and WLAN frequency bands
- Built-in IPEX1 connector interface for direct cable attachment
- Adhesive-based mounting method for reliable surface attachment
Antennas RF Applications
- Wi-Fi module integration
- WLAN device connectivity
- Compact wireless IoT hardware
Antennas RF Procurement Notes
Verify the complete part number including the suffix against official manufacturer documentation to ensure correct connector type and adhesive specifications. Confirm RoHS compliance status and operating temperature range requirements prior to procurement. Cross-reference with current datasheets to validate availability and manufacturing status.
Antennas RF Selection Notes
Select this component when space constraints prohibit external antennas in Wi-Fi or WLAN designs. Ensure the host PCB material and geometry support the specific trace antenna performance characteristics. Verify that the IPEX1 connector mating requirements align with the system's cable assembly specifications.
Antennas RF Part Context
This part belongs to the NANF series of integrated antennas from NIC Components Corp. These components are engineered to replace bulky external antenna solutions in modern electronic devices. The series focuses on providing reliable wireless connectivity within minimal footprint constraints for consumer and industrial electronics.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents if this specific model is discontinued.
