NANF6X5AMW2R450G1X70JHF

Antennas RF Overview

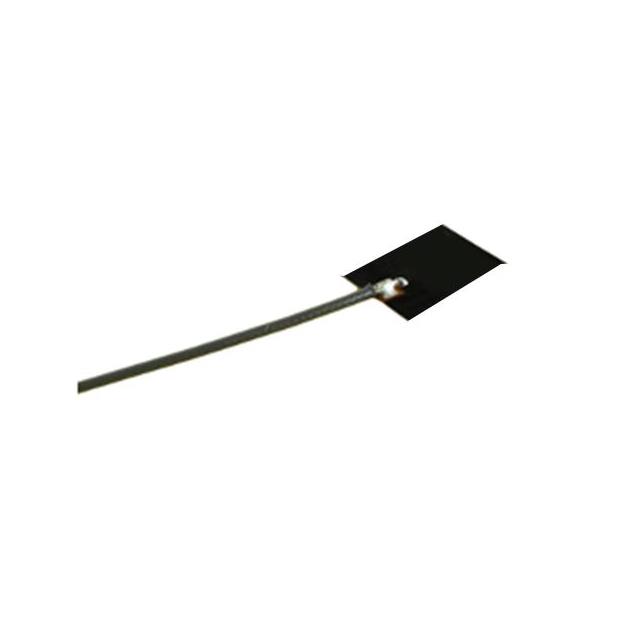

The NANF6X5AMW2R450G1X70JHF is a surface-mount RF antenna designed for Wi-Fi and WLAN applications. Manufactured by NIC Components Corp, this component utilizes PCB trace technology integrated with an IPEX1 connector interface. It is engineered to provide reliable wireless signal transmission in compact electronic devices requiring standardized RF connectivity.

Antennas RF Feature Summary

• Integrated PCB trace antenna design for space-constrained layouts
• Standardized IPEX1 connector interface for easy integration
• Optimized for Wi-Fi and WLAN frequency bands

Antennas RF Applications

• Wireless LAN modules
• Wi-Fi enabled consumer electronics
• IoT communication devices

Antennas RF Procurement Notes

Verify the specific IPEX1 connector mating compatibility with your system's RF front-end before procurement. Confirm that the PCB layout supports the required trace antenna geometry as specified in the manufacturer's documentation to ensure optimal signal performance and impedance matching.

Antennas RF Selection Notes

Select this component when a low-profile, surface-mount solution is required for Wi-Fi or WLAN connectivity. The IPEX1 interface ensures compatibility with standard RF cables and connectors. Ensure the host device's internal space accommodates the antenna footprint and that the application environment does not interfere with the radiating element.

Antennas RF Part Context

This part belongs to the NANF series of surface mount antennas from NIC Components Corp. These components are designed to replace discrete wire antennas or larger external solutions, offering a streamlined manufacturing process for modern portable and embedded wireless devices.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
