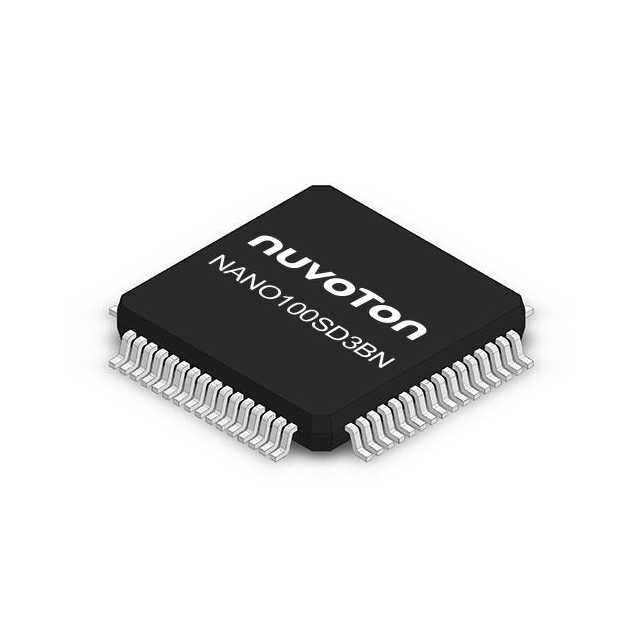

NANO100SD3BN is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Nuvoton Technology Corporation. Its product description is IC MCU 32BIT 64KB FLASH 64LQFP. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for NANO100SD3BN
- Description：IC MCU 32BIT 64KB FLASH 64LQFP
- Series：NuMicro™ Nano100
- Mfr：Nuvoton Technology Corporation
- Package：Tray
- Core Processor：ARM® Cortex®-M0
- Core Size：32-Bit Single-Core
- Speed：42MHz
- Connectivity：I2C, SPI, UART/USART
- Peripherals：Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
- Number of I/O：52
- Program Memory Size：64KB (64K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：16K x 8
- Voltage - Supply (Vcc/Vdd)：1.8V ~ 3.6V
- Data Converters：A/D 7x12b; D/A 2x12b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：-
- Package / Case：64-LQFP
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for NANO100SD3BN
Microcontrollers Overview
The NANO100SD3BN is a 32-bit microcontroller from the NuMicro Nano100 Base Line series, featuring an ARM Cortex-M0 core operating up to 42 MHz. It provides 64 KB of embedded Flash memory and 16 KB of SRAM within a LQFP64 package. The device supports a wide voltage range of 1.8V to 3.6V and operates across a temperature range of -40°C to 85°C.
Microcontrollers Feature Summary
- Ultra-low power consumption with fast wake-up capabilities via multiple peripheral interfaces
- Integrated Real Time Counter (RTC) for timekeeping functions
- Supports In-System Programming (ISP) and In-Circuit Programming (ICP)
- Includes Brown-out Detector and Power-down mode with RAM retention
Microcontrollers Applications
- Portable Data Collector
- Portable Medical Monitor
- Smart Card Reader
- Wireless Automatic Meter Reader (AMR)
Microcontrollers Procurement Notes
Verify the specific ordering suffix against official documentation to confirm pinout compatibility and package dimensions. Ensure the selected variant matches the required memory capacity and peripheral configuration for your design. Cross-reference the datasheet revision to validate electrical characteristics before finalizing procurement.
Microcontrollers Selection Notes
Select this component for applications requiring low-cost 32-bit processing with minimal power usage. The Nano100 Base Line offers essential connectivity interfaces suitable for battery-operated devices. Evaluate the available GPIO count and peripheral set against system requirements to ensure adequate resource allocation.
Microcontrollers Part Context
This part belongs to the NuMicro Nano100 Series, specifically the Base Line segment designed for cost-sensitive embedded control. The series emphasizes high integration and low standby current, making it ideal for portable consumer electronics and industrial monitoring systems where power efficiency is critical.
Microcontrollers Replacement Considerations
Consult the official selection guide for compatible alternatives within the Nano100 family. Verify pin-to-pin compatibility and memory size when considering substitutes such as other variants in the SD or LD series.
