NAP-20-681

Power Line Filter Modules Overview

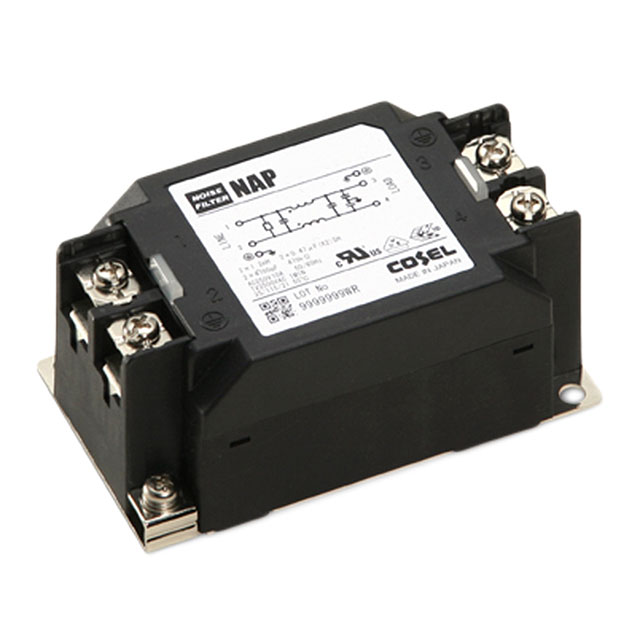

The NAP-20-681 is a single-phase EMC/EMI line filter module manufactured by Cosel USA, Inc. It is designed for power line filtering applications with a rated current of 20 A and a voltage rating of 250 V AC or DC. The unit features a single-stage configuration and utilizes terminal block connections for installation.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic compatibility filtering
• Terminal block connection interface
• DIN rail mounting capability

Power Line Filter Modules Applications

• Industrial equipment noise suppression
• Power supply input filtering
• Electromagnetic interference reduction in control panels

Power Line Filter Modules Procurement Notes

Verify the specific suffix (e.g., -D) required for your terminal type and compliance needs. Confirm RoHS status and lead times with authorized distributors as availability varies. Ensure the 20A rating and 250V specification match your system requirements before ordering.

Power Line Filter Modules Selection Notes

Select this model for single-phase AC or DC circuits requiring 20A filtering capacity. Compare attenuation characteristics against other NAP series variants if higher performance is needed. Verify DIN rail compatibility and terminal block orientation during mechanical design integration.

Power Line Filter Modules Part Context

This component belongs to the NAP series of power line filter modules from Cosel USA, Inc. The series offers various current ratings and configurations for EMI suppression in industrial and commercial power systems.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the NAP series such as NAP-20-472-D or NAP-30-000 depending on current and attenuation requirements. Verify pinout and mounting dimensions before substitution.
