Product Detailed Parameters
- Description：I2S MONO 3.2W CLASS-D AMPLIFIER
- Series：-
- Mfr：Nuvoton Technology Corporation
- Package：Tray
- Type：Class D
- Output Type：1-Channel (Mono)
- Max Output Power x Channels @ Load：3.2W x 1 @ 4Ohm
- Voltage - Supply：2.5V ~ 5.25V
- Features：-
- Mounting Type：Surface Mount
- Supplier Device Package：20-QFN (4x4)
- Package / Case：20-WFQFN Exposed Pad
- Operating Temperature：-40°C ~ 85°C (TA)
- Grade：-
- Qualification：-
Download product information
Overview

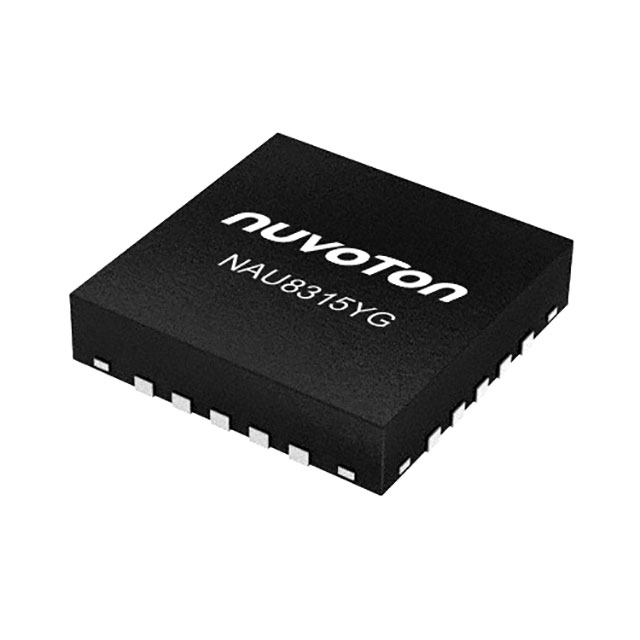

The NAU8315YG is a mono high-efficiency filter-free Class-D audio amplifier in a 20-pin QFN package. It drives 4Ω loads with up to 3.2W output power at 5V and 1.76W at 4.2V (1% THD+N). Key electrical parameters include 91% efficiency, 80dB PSRR at 217Hz, and ultra-low quiescent current. The device accepts I2S/PCM digital inputs, supports sampling rates from 8K to 96KHz, and features pin-selectable gain settings.
Feature Summary
- Filter-free Class-D architecture for simplified PCB layout
- Pin-selectable gain modes and channel configuration
- Integrated click-and-pop suppression circuitry
- Low standby current with fast startup capability
Applications
- Gaming controllers
- Wireless VR headsets
- Smart remote controllers
- Notebooks and tablet PCs
- Personal media players
Procurement Notes
Verify the specific suffix 'YG' corresponds to the 20-pin QFN package variant when ordering. Confirm that the application design accounts for the exposed thermal pad connection requirements specified in the datasheet. Ensure supply voltage ranges align with the recommended operating conditions for optimal performance.
Selection Notes
Select this component for portable applications requiring high efficiency and low noise without external output filters. Consider the 20-pin QFN package for better thermal dissipation compared to WLCSP options. Verify compatibility with host digital audio interfaces supporting I2S or PCM protocols within the specified sampling rate range.
Part Context
The NAU8315 series includes variants in 9-ball and 12-ball WLCSP packages alongside the 20-pin QFN version. The YG suffix specifically denotes the QFN package type. This family targets battery-powered devices where space constraints and power efficiency are critical design factors.
Replacement Considerations
NAU8315B31VG (12-ball WLCSP)
FAQ
Does the NAU8315 require external output filters?
No, the NAU8315 is designed as a filter-free Class-D amplifier, eliminating the need for external LC filters.
How is the gain configured on the NAU8315YG?
Gain is set via the GAIN input pin using external connections to VDD, VSS, or resistors, allowing for five distinct gain modes.
