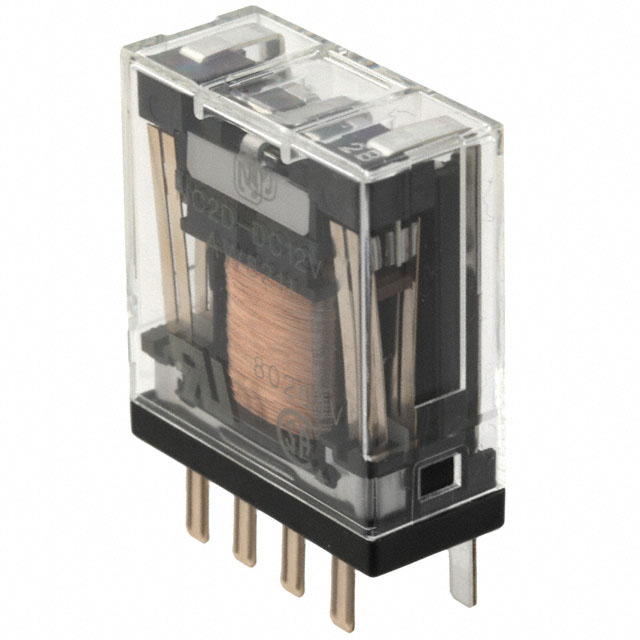

NC2D-DC60V

NC2D-DC60V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE DPDT 5A 60V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for NC2D-DC60V

• Description：RELAY GEN PURPOSE DPDT 5A 60V
• Series：NC
• Mfr：Panasonic Electric Works
• Package：Box
• Mounting Type：Socketable
• Coil Voltage：60VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：250VAC - Max
• Load - Max Switching：1250VA
• Coil Current：6 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：48 VDC
• Must Release Voltage：6 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for NC2D-DC60V
