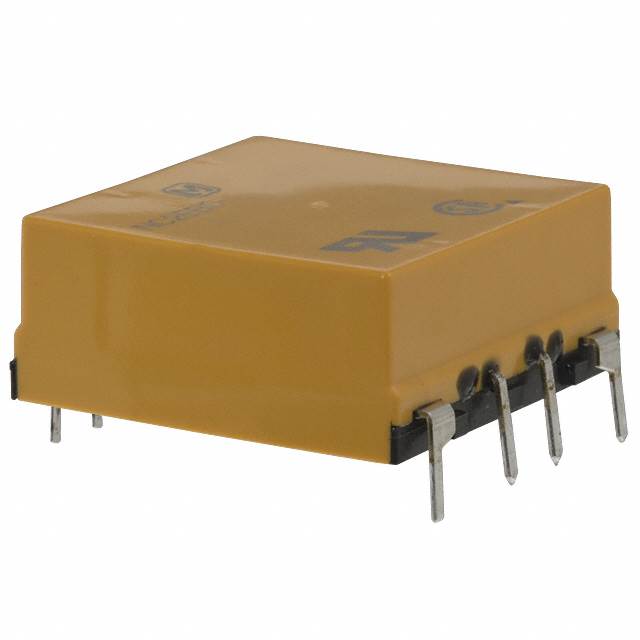

Power Relays, Over 2 Amps NC2EBD-JPL2-DC24V product image

NC2EBD-JPL2-DC24V

Description：RELAY GEN PURPOSE DPDT 5A 24V
Series：NC
Mfr：Panasonic Electric Works
Package：Tube

SKU:45197ecc1922 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NC2EBD-JPL2-DC24V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE DPDT 5A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for NC2EBD-JPL2-DC24V

Description：RELAY GEN PURPOSE DPDT 5A 24V
Series：NC
Mfr：Panasonic Electric Works
Package：Tube
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：5:00 AM
Switching Voltage：250VAC - Max
Load - Max Switching：1250VA
Coil Current：33.3 mA
Coil Type：Latching, Dual Coil
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Fully
Coil Insulation：-
Must Operate Voltage：19.2 VDC
Must Release Voltage：-
Operating Temperature：-40°C ~ 70°C
Contact Material：Silver Nickel (AgNi), Gold (Au)
Approval Agency：CSA, UR
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for NC2EBD-JPL2-DC24V

NC2EBD-JPL2-DC24V
