NC7SP00L6X

$0.08

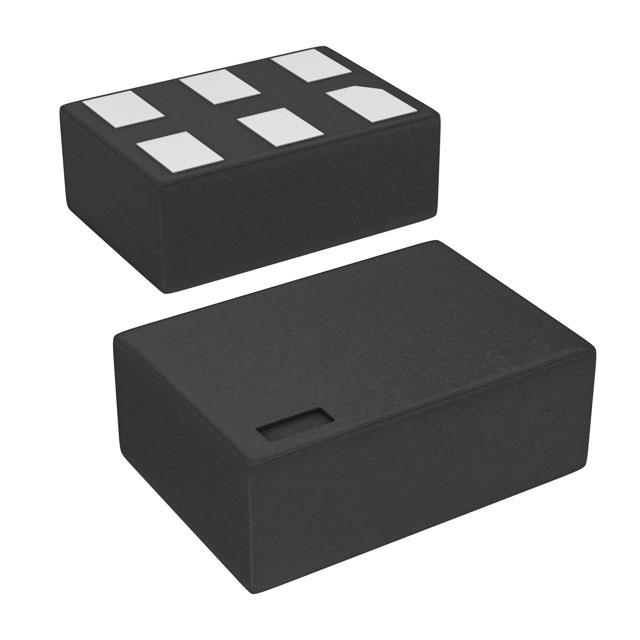

Description：IC GATE NAND 1CH 2-INP 6MICROPAK
Series：7SP
Mfr：Fairchild/ON Semiconductor
Package：Tape & Reel (TR)

SKU:3eb504a4425e Category: Gates and Inverters Brand: Fairchild/ON Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NC7SP00L6X is listed in the Inverter Gates range at ChipApex. The manufacturer field lists Fairchild/ON Semiconductor. Its product description is IC GATE NAND 1CH 2-INP 6MICROPAK. Review the specifications below when checking this part for your BOM.

Inverter Gates specifications for NC7SP00L6X

Description：IC GATE NAND 1CH 2-INP 6MICROPAK
Series：7SP
Mfr：Fairchild/ON Semiconductor
Package：Tape & Reel (TR)
Logic Type：NAND Gate
Number of Circuits：1
Number of Inputs：2
Features：-
Voltage - Supply：0.9V ~ 3.6V
Current - Quiescent (Max)：0.9 µA
Current - Output High, Low：2.6mA, 2.6mA
Input Logic Level - Low：0.7V ~ 0.9V
Input Logic Level - High：1.6V ~ 2.1V
Max Propagation Delay @ V, Max CL：7ns @ 3.3V, 30pF
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Supplier Device Package：6-MicroPak
Package / Case：6-UFDFN
Grade：-
Qualification：-

Inverter Gates datasheet and documents for NC7SP00L6X

NC7SP00L6X

Inverter Gates Overview

The NC7SP00L6X is a single-channel, dual-input NAND gate manufactured by ON Semiconductor. It utilizes TinyLogic ULP technology and is housed in a 6-pin MicroPak package. The device operates within a supply voltage range of 1.65V to 5.5V and supports an operating temperature range from -40°C to +85°C.

Inverter Gates Feature Summary

Single-channel dual-input NAND logic function
TinyLogic ultra-low power CMOS technology
Compact 6-pin MicroPak surface-mount packaging

Inverter Gates Applications

Portable battery-powered equipment
Low-voltage digital signal processing
Consumer electronics logic control

Inverter Gates Procurement Notes

Verify the manufacturer designation as ON Semiconductor or Fairchild, as both entities are associated with this part number in public records. Confirm the specific suffix L6X corresponds to the 6-pin MicroPak tape-and-reel configuration. Ensure the component meets RoHS compliance standards required for modern assembly processes.

Inverter Gates Selection Notes

Select this component when a compact NAND gate is required for low-power applications. The 6-pin MicroPak package offers space efficiency compared to standard SOIC options. Verify that the 1.65V to 5.5V supply range aligns with the system's voltage rails and that the single-gate configuration meets the circuit design requirements.

Inverter Gates Part Context

This component belongs to the TinyLogic family, which focuses on high-speed, low-power performance in small packages. The NC7SP00 variant specifically provides NAND functionality. The L6X suffix indicates the specific tape-and-reel packaging format compatible with automated surface-mount assembly lines.
