NC7SZ11L6X

Inverter Gates Overview

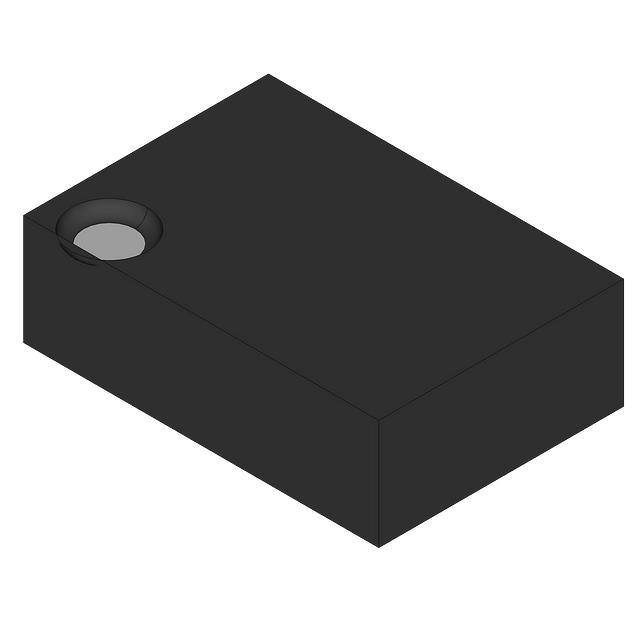

The NC7SZ11L6X is a single-function logic gate manufactured by Fairchild Semiconductor, belonging to the TinyLogic UHS series. It functions as a three-input AND gate housed in a MicroPak package. The device supports a supply voltage range from -500 mV to 7 V and operates within a temperature range up to +85 C. Key electrical parameters include a propagation delay of 19 ns and a power dissipation of 150 mW. It is designed for surface mount installation and complies with RoHS standards.

Inverter Gates Feature Summary

• Provides three-input AND logic functionality within a compact MicroPak package
• Supports ultra-high-speed operation with low propagation delay characteristics
• Operates across a wide supply voltage range suitable for various logic levels

Inverter Gates Applications

• Digital signal processing circuits requiring high-speed logic operations
• Portable electronic devices utilizing space-saving surface mount packages
• Consumer electronics implementing complex logic control functions

Inverter Gates Procurement Notes

Verify the specific manufacturer designation, as this part number may be associated with onsemi following industry acquisitions. Confirm the exact package variant and suffix codes against current official datasheets to ensure compatibility with design specifications. Check for any product lifecycle changes or obsolescence notices before finalizing procurement plans.

Inverter Gates Selection Notes

Select this component when a three-input AND function is required in a minimal footprint. The MicroPak package offers significant space savings compared to standard SOIC options. Ensure the application voltage requirements align with the specified operating range and that thermal constraints accommodate the stated power dissipation limits.

Inverter Gates Part Context

This component is part of the TinyLogic family, known for combining small physical size with high performance. The NC7SZ11 series specifically addresses the need for multiple logic gates in limited board space. The L6X suffix typically denotes the specific MicroPak packaging configuration used for surface mount applications.

Inverter Gates Replacement Considerations

Direct substitutes include other TinyLogic UHS three-input AND gates such as the NC7SZ11P6X. Verify pinout compatibility and package dimensions when considering alternative manufacturers or series within the same logic family.
