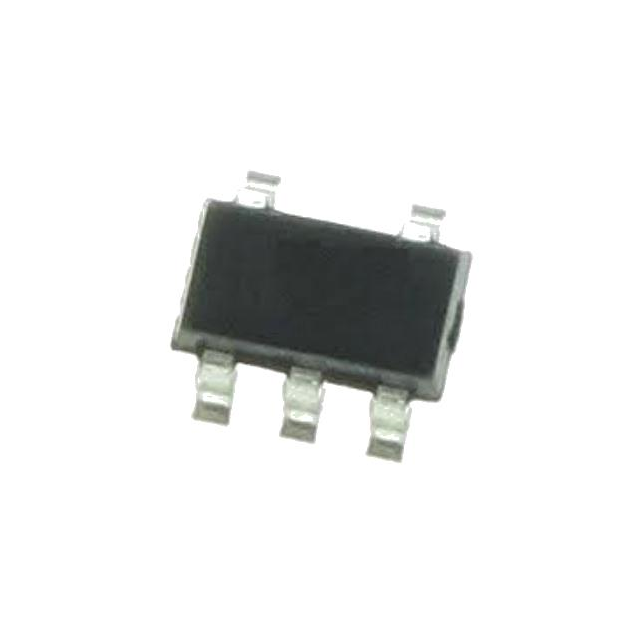

NC7SZ14P5X-F080 is listed in the Inverter Gates range at ChipApex. The manufacturer field lists Fairchild Semiconductor. Its product description is IC INVERTER. Review the specifications below when checking this part for your BOM.
Inverter Gates specifications for NC7SZ14P5X-F080
- Description：IC INVERTER
- Series：*
- Mfr：Fairchild Semiconductor
- Package：Bulk
- Logic Type：-
- Number of Circuits：-
- Number of Inputs：-
- Features：-
- Voltage - Supply：-
- Current - Quiescent (Max)：-
- Current - Output High, Low：-
- Input Logic Level - Low：-
- Input Logic Level - High：-
- Max Propagation Delay @ V, Max CL：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Grade：-
- Qualification：-
Inverter Gates datasheet and documents for NC7SZ14P5X-F080
Inverter Gates Overview
The NC7SZ14P5X-F080 is a single inverter with Schmitt trigger input from the TinyLogic UHS series. Fabricated using advanced CMOS technology, it achieves ultra-high speed and high output drive while maintaining low static power dissipation across a broad VCC operating range of 1.65V to 5.5V. The device features inputs that tolerate voltages up to 6V independent of VCC, facilitating 5V to 3V translation. It includes proprietary noise/EMI reduction circuitry and offers power-down high impedance for inputs and outputs.
Inverter Gates Feature Summary
- Ultra-high speed performance with typical propagation delay of 3.7ns into 50pF at 5V VCC
- High output drive capability providing ±24mA at 3V VCC
- Broad VCC operating range from 1.65V to 5.5V
- Over-voltage tolerant inputs facilitate 5V to 3V translation
Inverter Gates Applications
- General-purpose digital signal inversion
- Waveform shaping and pulse generation
- Timing applications requiring hysteresis
Inverter Gates Procurement Notes
Verify the specific suffix -F080 against official onsemi/Fairchild documentation to confirm tape-and-reel quantity and packaging specifications. Ensure compatibility with existing PCB footprints for SC-70 or SOT-23 packages. Confirm RoHS compliance status through current datasheets as manufacturing sources may have transitioned.
Inverter Gates Selection Notes
Select this component when space-constrained designs require a single inverter with Schmitt trigger functionality. It is suitable for applications needing operation across a wide voltage range from 1.65V to 5V. Consider its high output drive and low power dissipation characteristics for battery-powered or high-density logic circuits.
Inverter Gates Part Context
This part belongs to the TinyLogic UHS family, designed for ultra-high-speed applications in small packages. It serves as a successor to legacy logic families, offering improved performance metrics while maintaining pin-out compatibility in SC-70 and SOT-23 form factors for easy design upgrades.
Inverter Gates Replacement Considerations
Check for direct equivalents within the NC7SZ14 series from onsemi. Verify package type (SC-70 vs SOT-23) and electrical parameters such as propagation delay and output current against alternative single inverters with Schmitt triggers.
