Product Detailed Parameters
- Description：SINGLE UNBUFRD INVERTER
- Series：7SZU
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Logic Type：Inverter
- Number of Circuits：1
- Number of Inputs：1
- Features：-
- Voltage - Supply：1.65V ~ 5.5V
- Current - Quiescent (Max)：2 µA
- Current - Output High, Low：16mA, 16mA
- Input Logic Level - Low：-
- Input Logic Level - High：-
- Max Propagation Delay @ V, Max CL：5ns @ 5V, 50pF
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount
- Supplier Device Package：6-UDFN (1x1)
- Package / Case：6-UFDFN
- Grade：-
- Qualification：-
Download product information
Overview

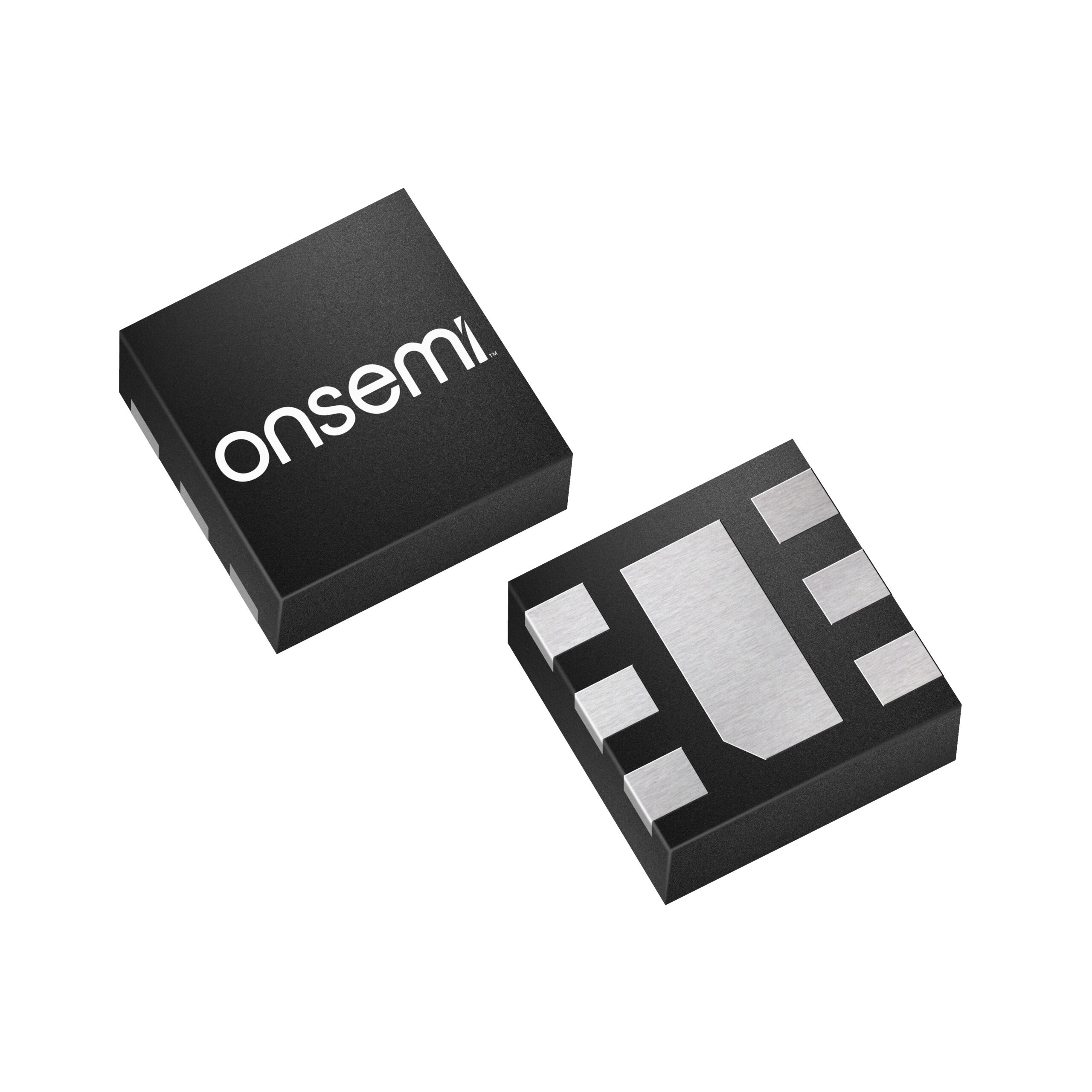

The NC7SZU04AFHX is a single unbuffered inverter from onsemi’s TinyLogic Ultra-High Speed series. It operates within a supply voltage range of 1.65 V to 5.5 V and supports an operating temperature range of -40 °C to +85 °C. The device provides balanced output drive with ±16 mA at 4.5 V VCC and features low quiescent power consumption, with ICC less than 2 µA at 5.5 V and 25°C. Propagation delay ranges from 3.9 ns to 12.1 ns depending on the supply voltage and load capacitance. It is housed in a UDFN6 (MicroPak2) package.
Feature Summary
- Unbuffered circuit design specifically intended for crystal oscillator or analog applications
- Balanced output drive capability providing high current sourcing and sinking
- Ultra-small MicroPak2 package footprint for space-saving designs
Applications
- Crystal oscillator circuits
- Analog signal processing applications
- General logic inversion requiring minimal loading
Procurement Notes
Verify that the ordering suffix AFHX corresponds to the UDFN6 MicroPak2 package configuration. Confirm RoHS compliance and Pb-free status requirements against specific project standards. Ensure input pins are not left floating during operation to maintain functionality.
Selection Notes
Select this component when an unbuffered inverter is required for linear range operation such as oscillators. Consider the broad 1.65 V to 5.5 V operating range for compatibility with various logic families. Evaluate the propagation delay specifications against the target frequency requirements.
Part Context
This part belongs to the NC7SZU04A family within the TinyLogic UHS series. It shares functional characteristics with other variants like the SC-88A and SIP6 packages but differs in physical dimensions and thermal properties due to the UDFN6 packaging technology.
Replacement Considerations
Direct substitutes include NC7SZU04AM5X, NC7SZU04AP5X, and NC7SZU04AL6X. These alternatives offer identical electrical performance but utilize different package types such as SC-74A, SC-88A, or MicroPak.
