NCD83591MNTXG

$2.73

Description：IC GATE DRVR HALF-BRIDGE 28VFQFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8adb0d290b1c Category: Gate Drivers Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC GATE DRVR HALF-BRIDGE 28VFQFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Driven Configuration：Half-Bridge
Channel Type：3-Phase
Number of Drivers：6
Gate Type：MOSFET (N-Channel)
Voltage - Supply：5V ~ 60V
Logic Voltage - VIL, VIH：0.7V, 2.1V
Current - Peak Output (Source, Sink)：250mA, 250mA
Input Type：Non-Inverting
Rise / Fall Time (Typ)：-
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount

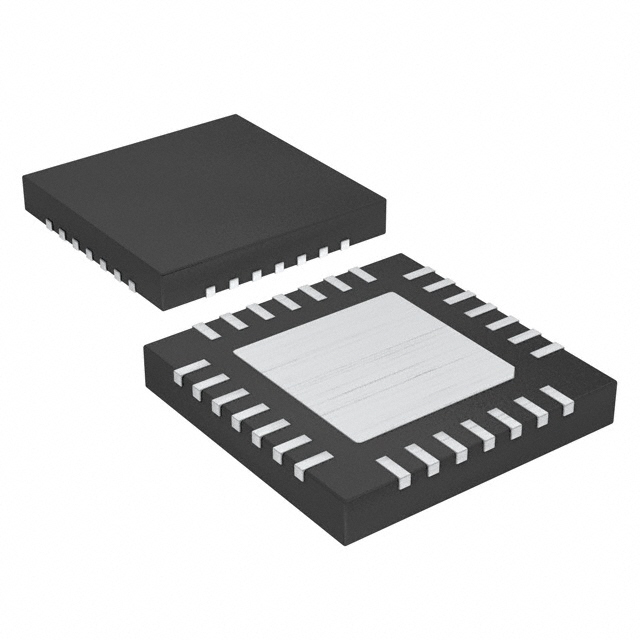

Package / Case：28-VFQFN Exposed Pad
Supplier Device Package：28-QFN (4x4)
Grade：-
Qualification：-
High Side Voltage - Max (Bootstrap)：-

Download product information

NCD83591MNTXG

Overview

The NCD83591MNTXG is a three-phase gate driver IC from onsemi, designed for brushless DC motor applications. It operates within a supply voltage range of 5V to 60V, with an absolute maximum rating of 70V. The device integrates a high-gain bandwidth current sense amplifier and features configurable constant gate drive source currents ranging from 5mA to 250mA. It includes an embedded charge pump for high-side driving and supports PWM frequencies up to 30kHz. Packaged in a compact QFN28 (4x4mm) format, it offers robust protection features including cross-conduction prevention and undervoltage lockout.

Feature Summary

Integrates a high-gain bandwidth current sense amplifier for precise control
Features configurable constant gate drive source current from 5mA to 250mA
Includes an embedded charge pump enabling DC static driving for the high side
Provides built-in PWM interlock mechanisms to optimize dead time

Applications

Electric power tools
Industrial actuators and collaborative robots
Lightweight transportation systems such as e-bikes and scooters
Automotive interior cooling fans

Procurement Notes

Verify the complete part number NCD83591MNTXG against official onsemi documentation to ensure correct suffix identification. Confirm that the QFN28 package dimensions match your PCB footprint requirements. Check for specific environmental compliance certifications required by your target market regulations before finalizing procurement orders.

Selection Notes

Select this component when designing BLDC motor controllers requiring integrated current sensing and high-side gate driving capabilities. It is suitable for applications needing optimized BOM costs due to its high integration level. Ensure the system voltage stays within the 5V to 60V operating range and consider the 30kHz PWM frequency limit for switching speed requirements.

Part Context

This device belongs to onsemi's portfolio of intelligent gate drivers tailored for motor control. It addresses the need for compact, cost-effective solutions in industrial and consumer electronics. The integration of power FET driving and current sensing reduces external component count compared to discrete solutions.

Replacement Considerations

Consult official onsemi substitution guides for verified alternatives. Cross-reference pinouts and electrical characteristics carefully if considering competitors' devices.
