NCL31001MNITWG

Overview

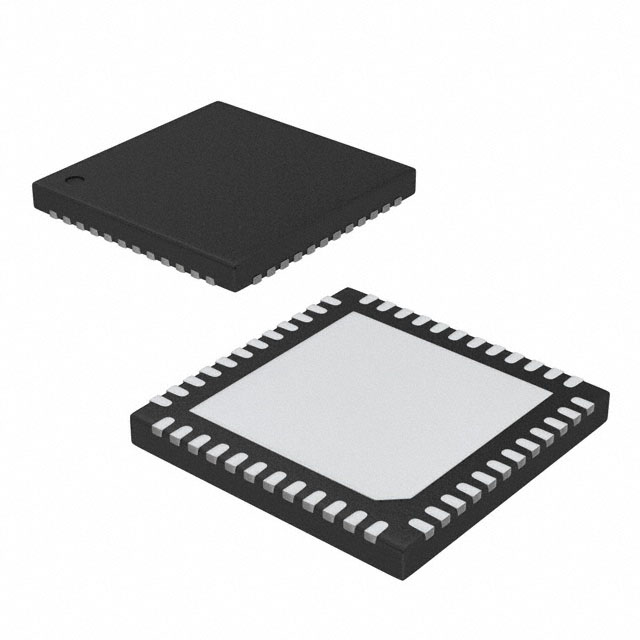

The NCL31001MNITWG is a single-channel intelligent LED driver IC from onsemi, featuring a buck topology. It operates within an input voltage range of 21.5 V to 57 V and delivers up to 3 A output current. The device supports an adjustable switching frequency between 44.4 kHz and 1 MHz, with an output voltage range of 4 V to 38 V. Packaged in a QFN-48 format, it functions across temperatures from -40°C to +125°C. Key electrical parameters include a maximum supply current of 3.15 mA and compliance with RoHS standards.

Feature Summary

• Intelligent control architecture enabling I2C serial communication for system integration
• Integrated power metrology and diagnostics for real-time monitoring of currents, voltages, and temperature
• Supports high-bandwidth analog and PWM dimming with true dimming capability down to zero current
• Includes auxiliary DC-DC converters to power microcontrollers and peripheral sensors

Applications

• Visible light communication systems
• Connected indoor and outdoor lighting infrastructure
• Multi-channel managed lighting networks
• Theater and therapeutic lighting environments
• Information displays and backlighting units

Procurement Notes

Verify the specific suffix 'TWG' confirms the I2C interface variant, as other suffixes may lack this functionality. Confirm end-of-life status implications for long-term production planning. Ensure ESD precautions are observed during handling due to moisture sensitivity classification. Validate that the QFN-48 package thermal requirements align with the target PCB design constraints.

Selection Notes

Select this component when precise digital control via I2C is required for LED management. The integrated buck converter and auxiliary supplies simplify designs needing multiple voltage rails. Consider the wide input voltage range for automotive or industrial bus applications. The diagnostic features support advanced fault detection and system health monitoring without external sensors.

Part Context

This part belongs to the NCL3100x family of intelligent LED drivers designed for luminaire applications. It shares architectural similarities with the NCL31000 series but includes specific interface variations. The family targets high-efficiency solutions exceeding 97% total system efficiency. Evaluation boards like the NCL31000ASGEVB utilize this device for Arduino shield compatibility testing.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
