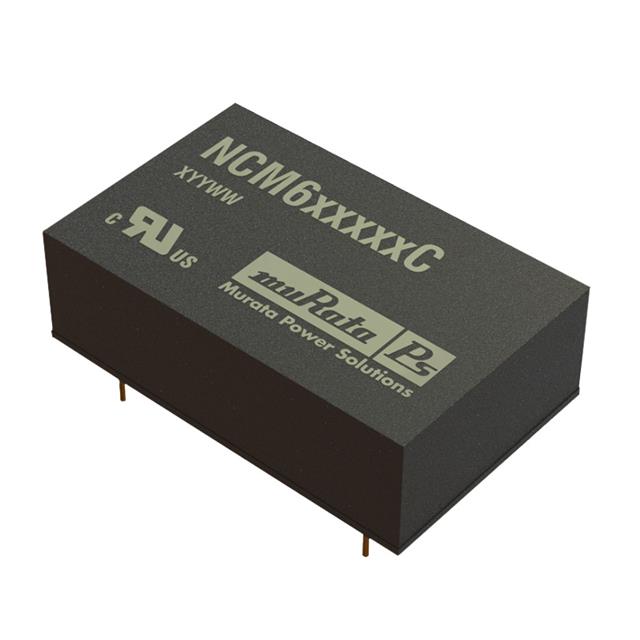

NCM6S0503C

NCM6S0503C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 3.3V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NCM6S0503C

• Description：DC DC CONVERTER 3.3V 6W
• Series：NCM6 (6W)
• Mfr：Murata Power Solutions Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.52A
• Power (Watts)：6 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：75%
• Mounting Type：Through Hole
• Package / Case：23-SMD Module, 7 Leads
• Size / Dimension：1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for NCM6S0503C
