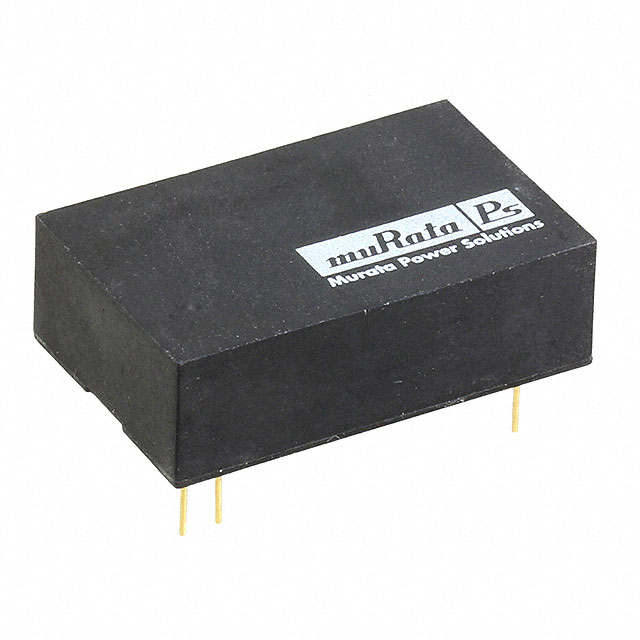

NCM6S0505EC

NCM6S0505EC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 5V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NCM6S0505EC

• Description：DC DC CONVERTER 5V 6W
• Series：NCM6 (6W)
• Mfr：Murata Power Solutions Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：6 W
• Voltage - Isolation：5.2 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 7 Leads
• Size / Dimension：1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for NCM6S0505EC
