NCP435FCT2G

Overview

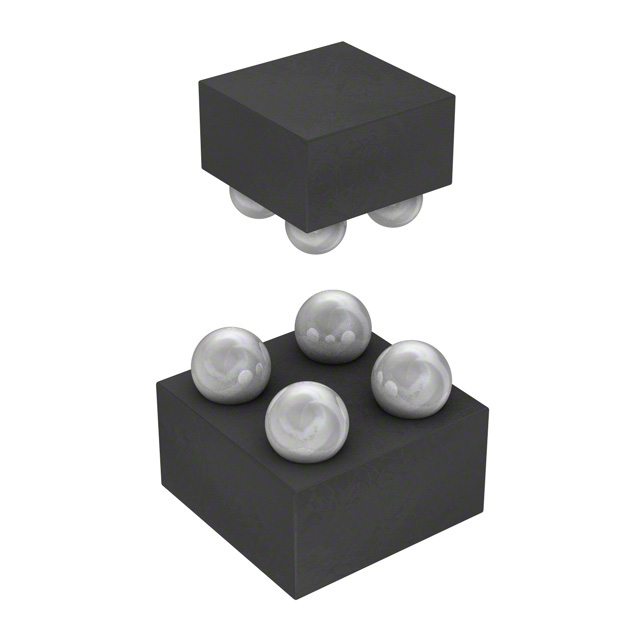

The NCP435FCT2G is a high-side load switch from onsemi, housed in a 4-pin WLCSP package measuring 0.96 x 0.96 x 0.33 mm. It supports an input voltage range of 1.2 V to 5.5 V and delivers a maximum output current of 2 A. The device features a typical on-resistance of 65 mΩ and a maximum on-resistance of 420 mΩ. Operating temperatures span from -40 °C to +125 °C, with a maximum turn-on time of 116 µs.

Feature Summary

• Ultra-small footprint utilizing a 4-pin WLCSP package for space-constrained designs.
• Integrated load discharge functionality to rapidly remove charge from downstream capacitors.
• High current capability supporting up to 2 A output for efficient power distribution.

Applications

• Portable consumer electronics requiring minimal board space
• Battery-powered devices needing efficient power management
• Embedded systems with strict thermal and size constraints

Procurement Notes

Verify the specific suffix 'FCT2G' against the manufacturer's latest datasheet to confirm package dimensions and tape-and-reel specifications. Ensure the procurement channel provides original component traceability. Cross-reference the RoHS compliance status directly with the official documentation prior to integration into production lines.

Selection Notes

Select this component when a compact form factor is critical alongside moderate current handling. The low on-resistance minimizes power loss during conduction. Consider the wide operating temperature range for harsh environments. Evaluate the turn-on speed requirements against system timing constraints before finalizing the design choice.

Part Context

This part belongs to the NCP435 series of power distribution switches designed by onsemi. It serves as a compact alternative to larger surface-mount packages, enabling higher density PCB layouts. The series focuses on integrating protection and switching functions within a minimal physical profile suitable for modern mobile and IoT applications.

Replacement Considerations

Direct substitutes include other onsemi load switches in similar small packages, such as the NCP335FCT2G. Verify pin compatibility and electrical parameters like on-resistance and current ratings before swapping components to ensure circuit integrity.

FAQ

What is the maximum output current rating?

The NCP435FCT2G supports a maximum continuous output current of 2 A.

Does the device support load discharge?

Yes, the integrated load switch includes a feature to actively discharge connected loads.
