Product Detailed Parameters
- Description：IC PWR SWITCH N-CHAN 1:1 8DFN
- Series：ecoSWITCH™
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：General Purpose
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：High Side
- Output Type：N-Channel
- Interface：On/Off
- Voltage - Load：0.5V ~ 13.5V
- Voltage - Supply (Vcc/Vdd)：3V ~ 5.5V
- Current - Output (Max)：6A
- Rds On (Typ)：18mOhm
- Input Type：Non-Inverting
- Features：Slew Rate Controlled
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：8-DFN (2x2)
- Package / Case：8-VFDFN Exposed Pad
- Grade：-
- Qualification：-
Download product information
Overview

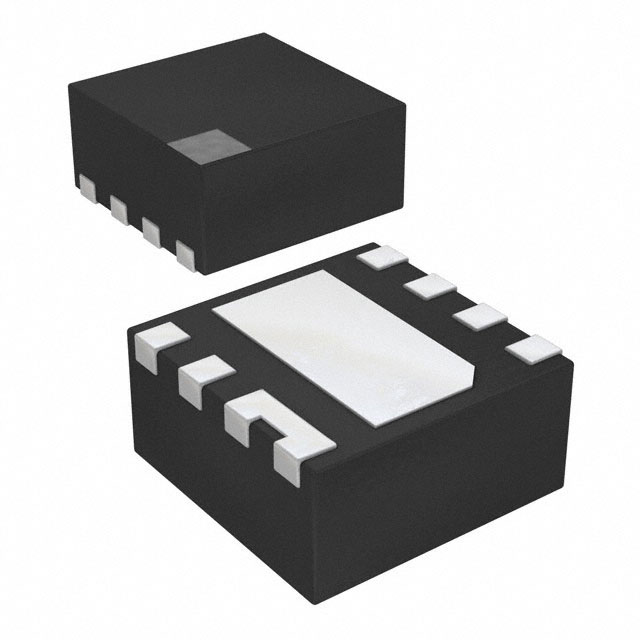

The NCP45525IMNTWG-H is an integrated load switch from onsemi, part of the ecoSWITCH family. It features a single channel with a maximum continuous current rating of 6.0 A. The device utilizes a DFN-8 package with dimensions of 2x2 mm and a height of 0.5 mm. Key electrical parameters include a maximum on-resistance (Ron) of 0.0317 Ω. The operational temperature range spans from -40 °C to 85 °C. The component is lead-free and complies with RoHS standards, featuring a moisture sensitivity level of 3.
Feature Summary
- Integrates a single-channel power switch with low on-resistance for efficient power distribution.
- Utilizes a compact DFN-8 package suitable for space-constrained designs.
- Includes built-in protection mechanisms typical of the ecoSWITCH series.
Applications
- Power distribution in portable electronic devices
- Load switching in consumer electronics
- Battery-powered equipment
Procurement Notes
Verify the complete part number including the suffix to ensure correct packaging and specifications. Confirm that the DFN-8 package and thermal requirements align with your PCB layout. Check for any specific handling instructions related to the moisture sensitivity level during assembly. Ensure compatibility with your system's voltage and current limits before integration.
Selection Notes
Select this component when a single-channel load switch with high current capability is required. Consider the low on-resistance for minimizing power loss. Evaluate the package size against available board space. Compare with similar parts in the NCP455xx series if different current ratings or pin configurations are needed.
Part Context
This part belongs to onsemi's ecoSWITCH line of integrated load switches. These devices are designed for applications requiring reliable power management in small form factors. The NCP45525 variant specifically offers a 6.0 A rating, distinguishing it from lower-current counterparts in the same family.
Replacement Considerations
The NCP45524IMNTWG-H is a related component within the same product family, offering similar functionality but potentially differing in specific electrical characteristics or packaging details. Verify datasheet specifications for direct substitution.
