NCP51145MNTAG

Description：IC REG LDO DDR 1OUT 8DFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)

SKU:54edbd360613 Category: Special Purpose Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC REG LDO DDR 1OUT 8DFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Applications：LDO (Linear), DDR
Voltage - Input：1V ~ 5.5V
Number of Outputs：1
Voltage - Output：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount

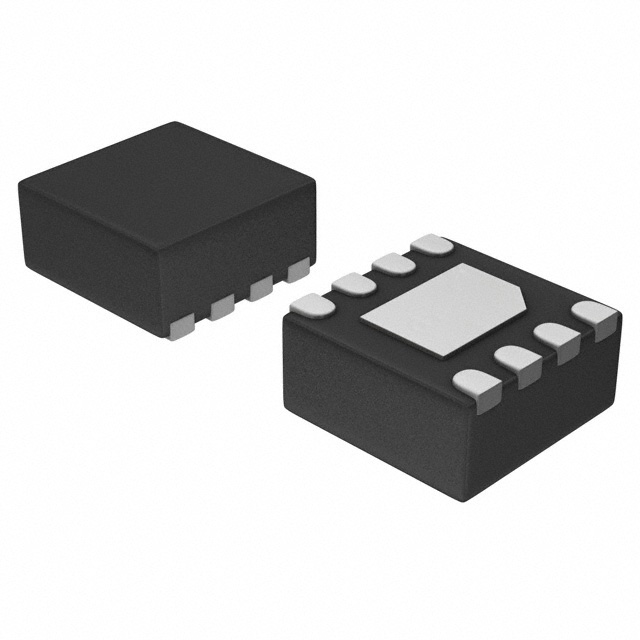

Package / Case：8-VFDFN Exposed Pad
Supplier Device Package：8-DFN (2x2)
Grade：-
Qualification：-

Download product information

NCP51145MNTAG

Overview

The NCP51145MNTAG is a linear regulator from the NCP51xxx series, manufactured by onsemi. It features an adjustable output voltage range of -0.3 V to 6 V and supports a maximum output current of 1.8 A. The device utilizes a DFN package with dimensions of 2 mm x 2 mm x 0.95 mm and offers 8 pins. It operates within an input voltage range of 1 V to 5.5 V and maintains a reference voltage of 0.9 V. Load regulation is specified at ±4 mV. The component functions reliably across a temperature range of -40 °C to +85 °C.

Feature Summary

Adjustable output voltage capability spanning from -0.3 V to 6 V
High current delivery supporting up to 1.8 A output load
Compact surface-mount DFN packaging for space-constrained designs

Applications

Portable electronic devices requiring efficient power management
Battery-powered systems needing stable voltage regulation
Embedded circuits utilizing low dropout performance

Procurement Notes

Verify the specific ordering suffix MNTAG against official onsemi documentation to confirm package type and tape-and-reel specifications. Ensure compatibility with standard surface-mount assembly processes. Cross-reference the datasheet for thermal pad requirements and soldering profiles to guarantee reliable attachment during manufacturing.

Selection Notes

Select this component when an adjustable output voltage up to 6 V is required alongside high current capacity. The wide input voltage range accommodates various supply sources. Consider the small DFN footprint for applications where board space is limited. Validate that the operating temperature range meets the environmental conditions of the target application.

Part Context

This part belongs to the NCP51xxx series of linear regulators from onsemi. The series provides solutions for power management in portable electronics. The NCP51145MNTAG specifically addresses needs for adjustable outputs and high current drive within a compact form factor, fitting into broader power supply architectures.
