NCP6335GFCCT1G

Voltage Regulators - DC DC Switching Regulators Overview

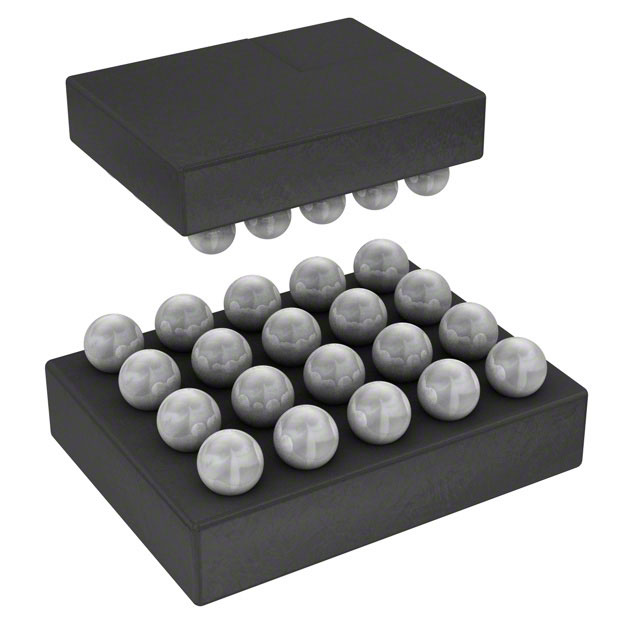

The NCP6335GFCCT1G is a single-output synchronous buck converter from onsemi, designed for processor and memory supply applications. It features an integrated power stage capable of delivering up to 4 A of continuous output current. The device operates with an input voltage range of 2.3 V to 5.5 V and provides a programmable output voltage between 0.6 V and 1.4 V. Key electrical parameters include a switching frequency of 3 MHz, a quiescent current of 35 µA, and support for I2C programming for dynamic voltage scaling. It utilizes a WLCSP-15 package for compact surface-mount installation.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated synchronous buck topology with high-efficiency power stage
• I2C interface enabling dynamic voltage scaling and monitoring
• Compact WLCSP-15 footprint optimized for space-constrained designs

Voltage Regulators - DC DC Switching Regulators Applications

• Processor core voltage regulation
• Memory subsystem power supplies
• Portable computing devices requiring efficient step-down conversion

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'GFCCT1G' against the manufacturer's official datasheet to confirm pinout compatibility and tape-and-reel specifications. Ensure that the ordering information matches the exact package type and marking requirements defined in the product documentation before finalizing procurement orders.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a single output with up to 4 A capacity is required for low-voltage digital loads. Consider the 3 MHz switching frequency for balancing component size and efficiency. Verify that the system design supports I2C communication for voltage adjustment if dynamic scaling is necessary for the application.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the NCP63xx series of synchronous buck converters from onsemi. These devices are engineered for portable electronics and embedded systems where high power density and efficiency are critical. The series typically integrates protection features such as over-current and thermal shutdown to ensure reliable operation under varying load conditions.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult the official cross-reference list or replacement guide provided by onsemi for verified substitute part numbers. Do not assume functional equivalence with other manufacturers' parts without verifying pinouts, electrical characteristics, and thermal performance against the original datasheet.
