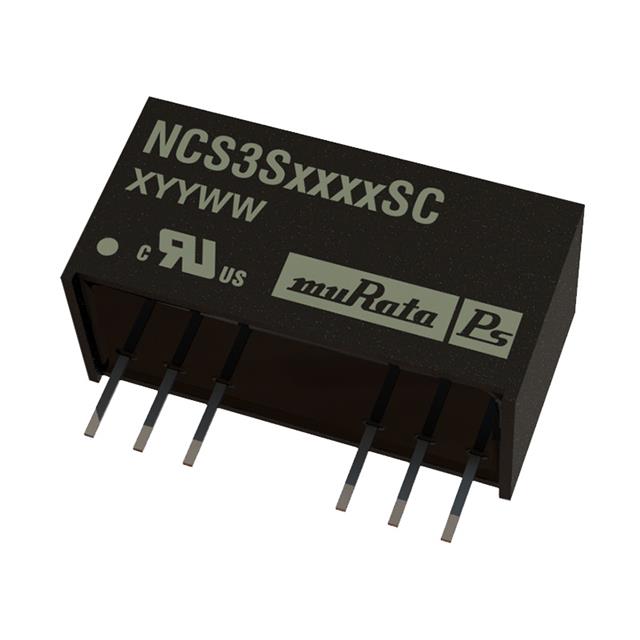

NCS3S4812SC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 12V 3W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for NCS3S4812SC
- Description：DC DC CONVERTER 12V 3W
- Series：NCS3 (3W)
- Mfr：Murata Power Solutions Inc.
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：18V
- Voltage - Input (Max)：75V
- Voltage - Output 1：12V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：250mA
- Power (Watts)：3 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：SCP
- Operating Temperature：-40°C ~ 85°C
- Efficiency：81%
- Mounting Type：Through Hole
- Package / Case：8-DIP Module, 6 Leads
- Size / Dimension：0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
DC DC Converters datasheet and documents for NCS3S4812SC
