NCV330MUTBG

Overview

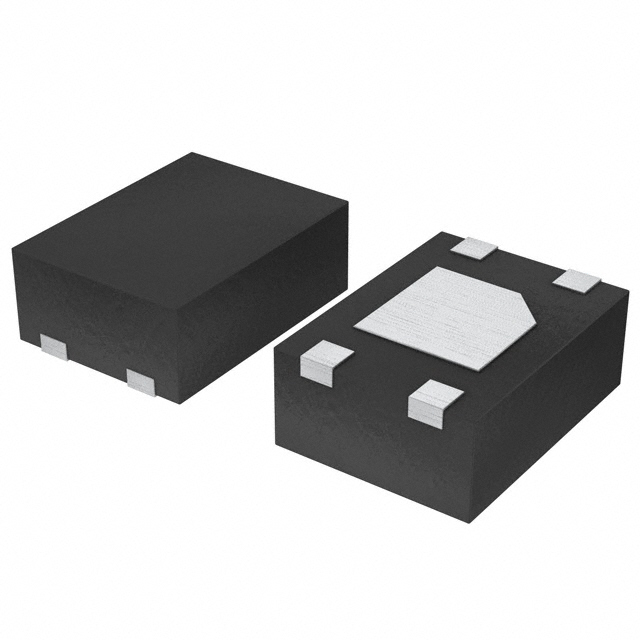

The NCV330MUTBG is a low on-resistance N-channel MOSFET load switch designed for mobile applications. It features a 2ms soft-start sequence control and supports a DC current of up to 3A with peak currents reaching 5A. The device operates within a voltage range of 1.8V to 5.5V and utilizes a 4-UDFN (1.2x1.6mm) package. It includes reverse voltage protection, high ESD immunity meeting IEC61000-4-2 standards, and an internal pull-down to ensure a safe-off state when the VIN pin is unconnected.

Feature Summary

• Integrated 2ms soft-start mechanism limits inrush current during power-up sequences.
• High current handling capability supports continuous loads up to 3A and peaks of 5A.
• Robust electrostatic discharge protection ensures reliability in sensitive environments.
• Automotive-grade qualification provides enhanced stability for vehicle electronics.

Applications

• Mobile device power distribution networks
• Battery charging circuit protection
• Portable electronic equipment load switching
• Automotive infotainment system power management

Procurement Notes

Verify that the component prefix matches the required automotive grade specifications. Confirm the package type aligns with the PCB footprint requirements. Ensure the ordering suffix corresponds to the desired tape and reel configuration. Check RoHS compliance status against current environmental regulations. Validate the manufacturer part number against official distributor catalogs to avoid counterfeit risks.

Selection Notes

Select this component for applications requiring controlled power sequencing and high current capacity in compact spaces. Consider the low on-resistance for improved efficiency in battery-powered systems. Evaluate the ESD ratings for environments prone to static discharge. Ensure the input voltage range matches the system's supply rails. Verify thermal performance under maximum load conditions.

Part Context

This part belongs to the NCP330 family of load switches from onsemi. It is specifically engineered for portable electronics where space and power efficiency are critical. The NCV prefix indicates automotive qualification, distinguishing it from standard commercial variants while maintaining functional compatibility.

Replacement Considerations

Direct substitutes include the NCP330 series components. Verify pinout compatibility and electrical parameters before substitution. Automotive versions may require specific PPAP documentation. Commercial equivalents might lack the necessary AEC-Q100 certification.
