NCV459MNWTBG

Overview

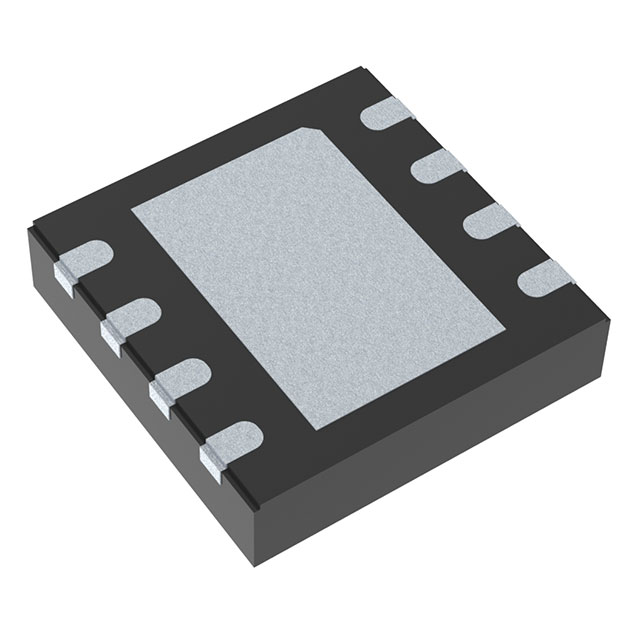

The NCV459MNWTBG is a single-channel load switch IC from onsemi, designed for power distribution in portable and battery-operated devices. It features an integrated N-channel MOSFET with a maximum output current of 4 A and a typical on-resistance of 23 mΩ. The device operates within a supply voltage range of 750 mV to 5.5 V and supports an extended temperature range from -40°C to +105°C. Key electrical parameters include a maximum rise time of 60 μs and a maximum fall time of 75 μs. The component is qualified under AEC-Q101 standards and is available in a compact DFNW8 3x3 mm package.

Feature Summary

• Optimized for low leakage current to extend battery life in portable applications
• Integrated automatic output discharge function when the enable pin is low
• AEC-Q101 automotive qualification for enhanced reliability
• Compact surface-mount packaging suitable for space-constrained designs

Applications

• Battery-powered consumer electronics
• Portable computing devices
• Automotive infotainment systems
• Wearable technology

Procurement Notes

Verify that the specific suffix matches the required tape and reel configuration for automated assembly processes. Confirm that the AEC-Q101 qualification aligns with the target application's reliability requirements. Ensure the operating temperature range meets the environmental conditions of the final product design. Cross-reference the datasheet specifications against the system's voltage and current constraints before integration.

Selection Notes

Select this component for applications requiring high efficiency and minimal quiescent current draw. The low on-resistance reduces power loss during conduction, which is critical for thermal management in dense layouts. Consider the external gate resistor capability for controlling rise times if electromagnetic interference mitigation is necessary. Evaluate the package size against the available PCB real estate to ensure proper thermal dissipation and mechanical fit.

Part Context

This part belongs to the NCV459 series of load switches, which are engineered for efficient power management in mobile and automotive sectors. The series provides robust protection and control capabilities while maintaining a small footprint. It serves as a key element in power distribution networks where precise switching and low standby power consumption are prioritized over high-voltage handling.

Replacement Considerations

Check for direct cross-references within the onsemi portfolio such as the NCV459MNTBG variant, ensuring identical pinout and electrical characteristics. Verify compatibility with existing board layouts and control logic levels before substituting.
