NCV5504DTRKG

$2.03

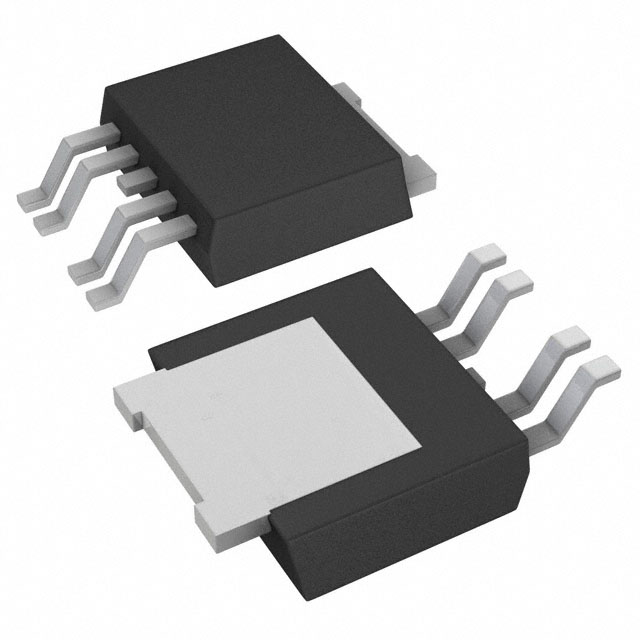

Description：IC REG LIN POS ADJ 250MA DPAK-5
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5f1ed54185e8 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NCV5504DTRKG is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists onsemi. Its product description is IC REG LIN POS ADJ 250MA DPAK-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for NCV5504DTRKG

Description：IC REG LIN POS ADJ 250MA DPAK-5
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Adjustable (Fixed)
Number of Regulators：2
Voltage - Input (Max)：18V
Voltage - Output (Min/Fixed)：1.25V (3.3V)
Voltage - Output (Max)：5V
Voltage Dropout (Max)：0.4V @ 250mA, 0.4V @ 250mA
Current - Output：250mA, 250mA
Current - Quiescent (Iq)：450 µA
Current - Supply (Max)：20 mA
PSRR：75dB ~ 60dB (120Hz ~ 1kHz)
Control Features：-
Protection Features：Over Current, Over Temperature, Short Circuit
Operating Temperature：-40°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Supplier Device Package：DPAK-5
Grade：Automotive
Qualification：AEC-Q100

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for NCV5504DTRKG

NCV5504DTRKG

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The NCV5504DTRKG is a dual-output positive adjustable linear regulator from onsemi, housed in a DPAK-5 surface-mount package. It delivers up to 250mA per output with an input voltage range up to 18V and a minimum output of 1.25V. The device features a quiescent current of 450µA and power supply rejection ratios of 75dB at 120Hz and 60dB at 1kHz. Designed for automotive applications, it operates between -40°C and 150°C and includes overcurrent, overtemperature, and short-circuit protection.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Dual-output architecture providing independent positive regulation channels within a single compact package.
Automotive-grade qualification ensuring reliability under harsh environmental conditions and extended temperature ranges.
Integrated protection mechanisms including overcurrent limiting, thermal shutdown, and short-circuit safety.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Automotive infotainment systems requiring stable dual voltage rails
On-board diagnostic (OBD) interface circuits
Sensor signal conditioning modules

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix against official datasheets to confirm exact electrical tolerances and packaging configurations. Ensure compatibility with automotive grade requirements by checking AEC-Q100 certification status. Confirm lead times as high-volume orders may require additional processing days. Validate that the DPAK-5 footprint matches your PCB design constraints before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when dual isolated or related voltage rails are needed from a single source in automotive environments. The 250mA output capability suits low-power logic and sensor interfaces. Consider the 450µA quiescent current impact on system standby power. Verify that the 18V maximum input voltage aligns with the vehicle's nominal bus voltage during transient events.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the NCV5504 series of dual LDO regulators designed specifically for automotive electronics. It complements other onsemi PMIC solutions by offering a simple, cost-effective method for generating two distinct voltages without complex switching topologies. The DPAK-5 package facilitates automated assembly while maintaining adequate thermal performance for moderate load currents.
