NCV59301DS30R4G

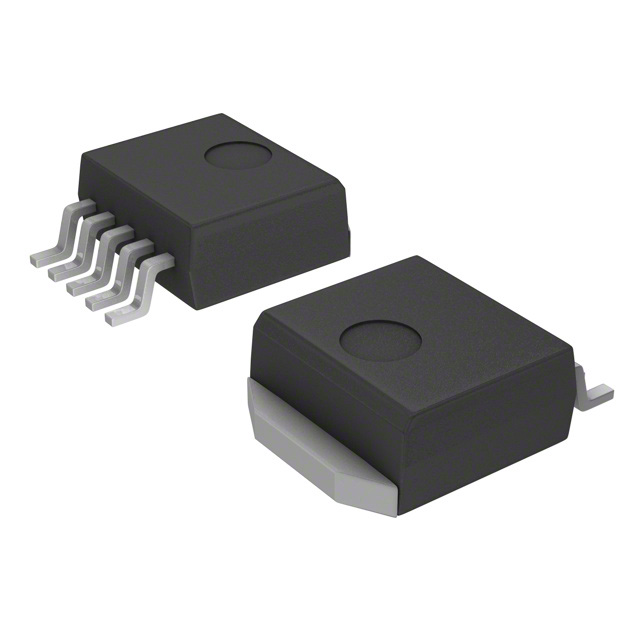

Description：IC REG LINEAR 3V 3A D2PAK-5
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)

SKU:162af4d11d33 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NCV59301DS30R4G is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists onsemi. Its product description is IC REG LINEAR 3V 3A D2PAK-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for NCV59301DS30R4G

Description：IC REG LINEAR 3V 3A D2PAK-5
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：13.5V
Voltage - Output (Min/Fixed)：3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.5V @ 3A
Current - Output：3A
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：-
Control Features：Enable, Error Flag
Protection Features：Over Current, Over Temperature, Reverse Polarity
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：D2PAK-5
Grade：Automotive
Qualification：AEC-Q100

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for NCV59301DS30R4G

NCV59301DS30R4G

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The NCV59301DS30R4G is a fixed-output low-dropout linear voltage regulator manufactured by onsemi. It provides a stable 3 V output with a maximum load current of 3 A. The device operates within an input voltage range of 2.24 V to 13.5 V and features a typical dropout voltage of 300 mV. It is qualified under the AEC-Q100 standard for automotive applications and functions reliably across a junction temperature range of -40 °C to +125 °C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Provides high-current regulation suitable for demanding automotive loads
Maintains stable output voltage with minimal voltage drop at full load
Engineered for robust performance in harsh automotive thermal environments

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Automotive electronic control units requiring regulated power rails
Infotainment systems needing stable 3 V supply
Sensor interface circuits in vehicle networks

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify component authenticity through authorized distribution channels. Confirm that the specific suffix matches the required output voltage and package variant. Ensure compliance with RoHS directives and check for any relevant REACH SVHC declarations prior to integration into production assemblies.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this regulator when a fixed 3 V rail is required with up to 3 A capacity. Consider the input voltage headroom relative to the dropout characteristics. Verify that the TO-252-5 package thermal dissipation meets the system's power budget requirements under maximum ambient conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This component belongs to the NCP59300 series of low-dropout regulators designed for automotive power management. It shares family characteristics such as AEC-Q100 qualification and surface-mount packaging, but differs from other variants in its specific fixed output voltage and current handling capabilities.
