NCV6323FELMTW12TBG

$1.80

Description：IC REG BUCK 1.2V 1.6A 8WDFNW
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4a093e46547e Category: Voltage Regulators - DC DC Switching Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NCV6323FELMTW12TBG is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists onsemi. Its product description is IC REG BUCK 1.2V 1.6A 8WDFNW. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for NCV6323FELMTW12TBG

Description：IC REG BUCK 1.2V 1.6A 8WDFNW
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：2.8V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.2V
Voltage - Output (Max)：-
Current - Output：1.6A
Frequency - Switching：3MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount, Wettable Flank

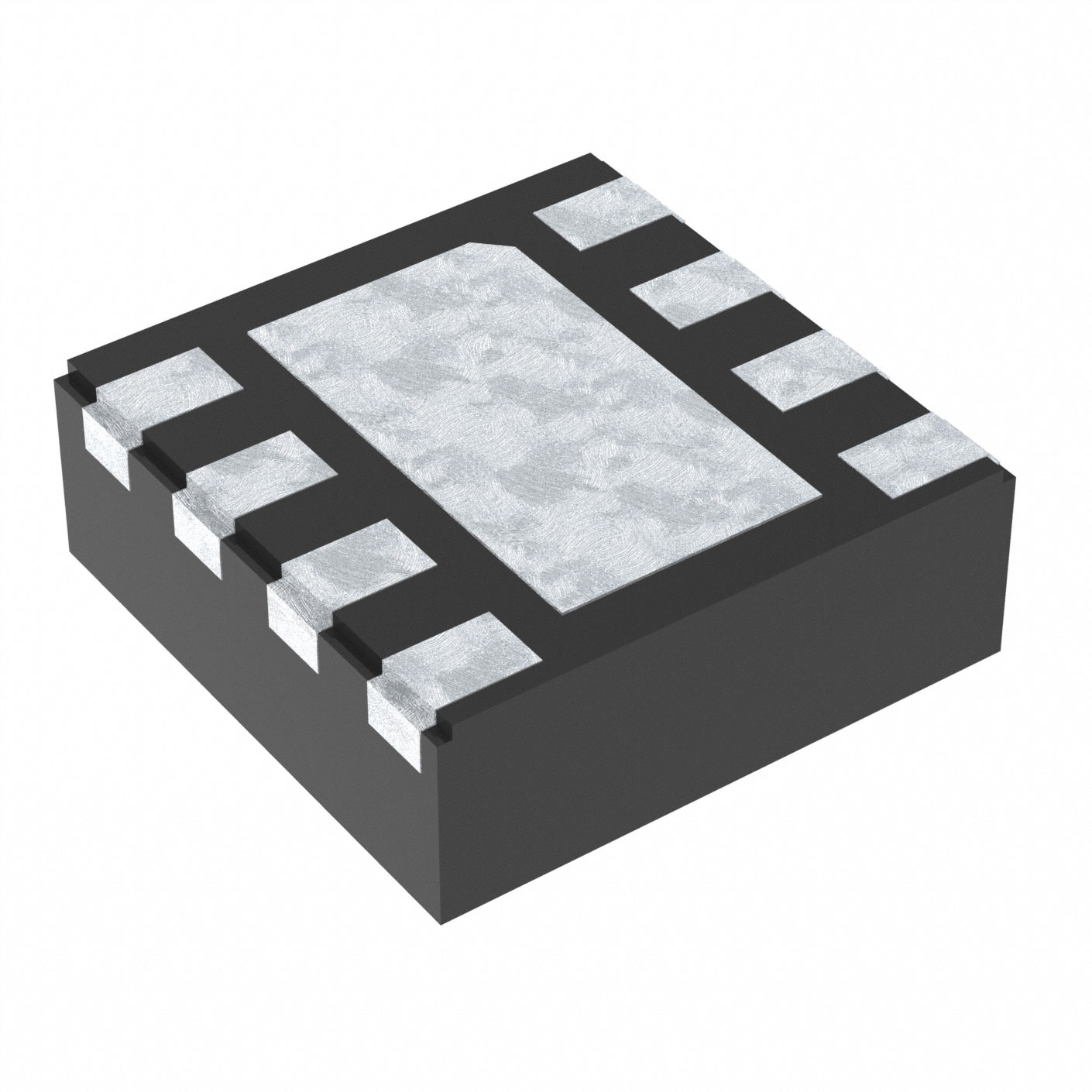

Package / Case：8-WFDFN Exposed Pad
Supplier Device Package：8-WDFNW (2x2)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for NCV6323FELMTW12TBG

NCV6323FELMTW12TBG

Voltage Regulators - DC DC Switching Regulators Overview

The NCV6323FELMTW12TBG is an automotive-grade synchronous buck converter from onsemi's NCV6323F series. It operates with a fixed 3 MHz switching frequency and delivers up to 2 A output current. The device features a fixed 1.2 V output voltage, regulated via PWM control. It supports an input voltage range of 2.5 V to 5.5 V. Designed for high efficiency and low ripple, it includes integrated synchronous rectification. The component is qualified to AEC-Q100 standards and is housed in an 8-WDFN package with a bare pad, suitable for space-constrained automotive applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Synchronous PWM buck topology with integrated power switches
Fixed 1.2 V output voltage configuration
Automotive grade qualification compliant with AEC-Q100
High switching frequency operation for compact passive design

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment system power distribution
ADAS sensor module voltage regulation
Telematics unit DC-DC conversion
In-vehicle gateway power management

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the complete part number including suffixes such as ELMTW12TBG against official datasheets to ensure correct output voltage and packaging specifications. Confirm AEC-Q100 compliance requirements match the target automotive application class. Check RoHS and REACH status for environmental compliance. Ensure ordering quantities align with manufacturer standard reel sizes.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 1.2 V output is required for automotive electronics. The fixed output simplifies design compared to adjustable variants. Verify that the 2 A current capability meets load demands. Consider the 3 MHz frequency for inductor size trade-offs. Ensure input voltage stays within the 2.5 V to 5.5 V range for proper operation.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the NCV6323 family of synchronous buck converters. Variants like NCV6323DMTAATBG offer adjustable outputs, while this specific model provides a fixed 1.2 V rail. The family targets automotive PMIC needs with high efficiency and small footprint solutions using WDFN packages.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

NCV6323BMTAATBG: Adjustable output variant, not electrically equivalent for fixed 1.2 V designs. NCV6323DMTAATBG: Adjustable output, different suffix. Direct replacement requires matching fixed 1.2 V output specification.
